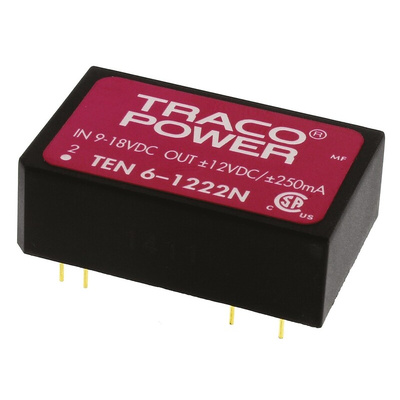

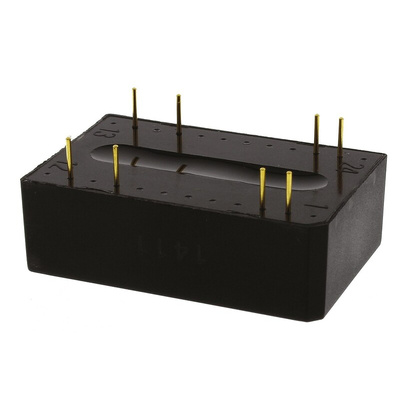

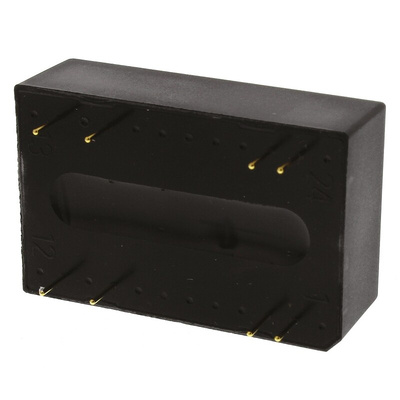

TEN 6-1222N, TRACOPOWER TEN 6N DC-DC Converter, ±12V dc/ ±250mA Output, 9 → 18 V dc Input, 6W, Through Hole, +85°C Max Temp, Преобразователь

Traco 6W Isolated DIP24 DC/DC Converters - TEN 6N Series

TEN 6N series 6W isolated DIP24 DC/DC converters with an optimized cost/performance ratio and a high efficiency. These TEN 6N series isolated DC/DC converters have a DIP-24 standard plastic package making them ideal for drop in replacements for cost critical applications.

2:1 input voltage range
High efficiency of up to 84%
Overload protection
No minimum load required
Internal filter to meet EN 55022 class A
1500VDC I/O isolation
Industry standard pinout

Note

MTBF: MIL-HDBK-217F
Derating: 3.3 & 5 Vdc models - 2.5 %/K above +60°C, other models 3.3 %/K above +70°C
The load regulation for dual output models will be 3.0% where a 50%/100% unbalanced load is drawn

Standards

UL/cUL 60950-1, IEC/EN 60950-1

Traco Power TEN 6N Series DC-DC Converter, 82% Efficiency, Through Hole Mount - TEN 6-1222N

This Traco Power is an efficient and versatile isolated DC-DC converter designed for a wide input voltage range of 12V DC. With a power rating of 6W, this converter offers high efficiency and reliability, making it ideal for applications in the fields of automation, electronics, electrical, and mechanical industries.

Features & Benefits

• Dual output converter with ±12V DC output voltage
• Through hole mounting for easy installation
• DIP 24 package for compatibility with various applications
• High efficiency of 82% for energy saving operation
• Isolated design ensures safety and protection
• Wide input voltage range of 9 18V DC for flexibility in usage
• Load regulation of ±3% for stable performance
• Operating temperature range of 40°C to +85°C for versatile applications
• Overload protection for added safety measures
• No minimum load required for convenience

Applications

• Suitable for use in Industrial automation systems
• Ideal for electronic control modules and power supplies
• Perfect for Electrical equipment and machinery
• Used in mechanical systems for reliable power conversion
• Suitable for applications requiring high efficiency and stable performance

Can it operate in extreme temperature conditions?

Yes, the Traco Power TEN 6-1222N can operate in a wide temperature range from -40°C to +85°C.

Will it provide stable output voltage under varying loads?

Yes, this converter offers excellent load regulation of ±3% for a stable output.

Is it compatible with different input voltage requirements?

Yes, this converter supports a wide input voltage range of 9-18V DC providing flexibility in usage.

Can it be used for applications requiring dual output voltages?

Yes, it is a dual output converter with ±12V DC output voltages.

Does it offer overload protection for added safety?

Yes, this converter comes with overload protection to ensure the safety of your equipment.
