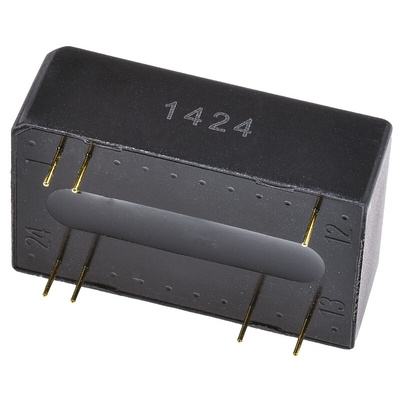

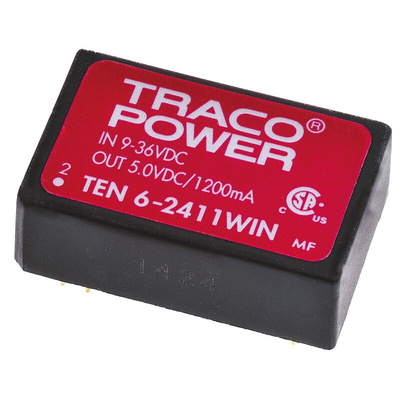

TEN 6-2411WIN, TRACOPOWER TEN 6WIN DC-DC Converter, 5V dc/ 1.2A Output, 9 → 36 V dc Input, 6W, Through Hole, +85°C Max Temp, Преобразователь

Traco Power DC-DC Converter, Single Output, 1.5kV DC Isolation - TEN 6WIN Series - TEN 6-2411WIN

Run a stable 5V DC input to your connected device with this DC-DC converter from Traco Power. It's comfortable when energising low-power equipment up to 6W and takes in a wide voltage range between 9 and 36V DC. You can rest assured that continuous short-circuit protection safeguards your equipment if a power surge occurs. Automatic recovery returns it to active duty when the fault passes, getting you back on track in a flash. This unit has the stamina to perform in extreme environments, thanks to an operating temperature range between -40°C and +85°C.

Features & Benefits

• 80% efficiency keeps waste to a minimum
• Space-efficient dimensions of 31.8 (L) x 20.3 (W) x 10.2mm (D) fit neatly into tight areas
• UL 94-V0-rated housing boosts safety as it self-extinguishes in under 10 seconds if it catches alight
• Through-hole mounting provides a secure and permanent fix that handles high-vibration environments
• ±1.2% load regulation means consistent power for optimal performance

Applications

• Industrial power supplies
• Data centres
• Medical equipment
• Renewable energy installations

What's the lifespan of this converter?

This DC-DC converter delivers a mean time between failures of over 800,000 hours, making it a dependable long-term option.
