TEN 6-4811WIN, TRACOPOWER TEN 6WIN DC-DC Converter, 5V dc/ 1.2A Output, 18 → 75 V dc Input, 6W, Through Hole, +85°C Max Temp, Преобразователь

Traco Power DC-DC Converter, ±1.2% Load Regulation, 48V DC Nominal Input Voltage - TEN 6WIN Series - TEN 6-4811WIN

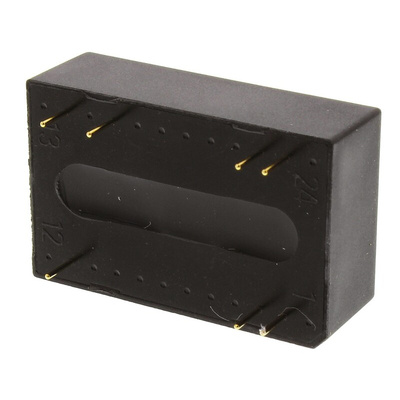

Need to get the right current for low-voltage applications? Pick this DC-DC converter from Traco Power. It takes inputs from 18 to 75V DC and outputs 5V DC to keep your kit running smoothly. The unit's DIP-24 package has two rows of connecting pins that achieve a secure hold to your PCB. The casing insulates electrically live components for shock-free handling during installation. An internal filter blocks radio frequency disturbances so you can rely on EN55022 Class A signal clarity.

Features & Benefits

• Steady performance in a broad temperature range between -40°C and +85°C
• 1.5kV DC isolation separates incoming and outgoing circuits for improved electrical safety
• 6W power rating for energy efficiency

Applications

• Medical devices
• Consumer electronics
• Telecommunications networks

How do I install this DC-DC converter?

The component is easy to install – just line up the pins with the corresponding holes on your PCB, punch them through and solder them in place.

Is this converter a practical replacement part?

Yes, the device's encasement makes it a handy, drop-in replacement part because everything's pre-assembled and ready to go.

Datasheet

Industrial Power Solutions Catalogue

Selection Guide
