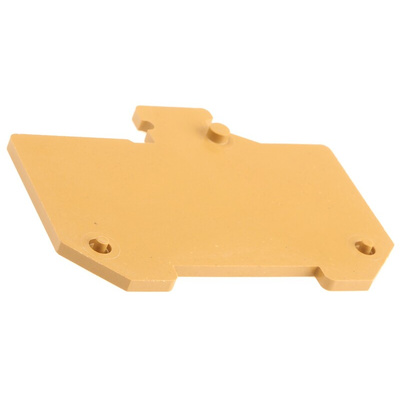

0301420000, Weidmuller RSF Series End Cover for Use with Modular Terminal

RSF (Spring Loaded)

Spring loaded terminal accommodates two hook bladed crimp terminals located in the slot in the current bar behind the screw clamp. The second blade is on the underside of the clamp.

Features and Benefits

• Clamping yoke technology
• Screw connection

Note

RSF jumper bar kits contain 1x 10-way bar, 10 screws and 10 spacers.

Approvals

CSA Certified, ESI

SAK Series

Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting

SAK Series Catalogue
