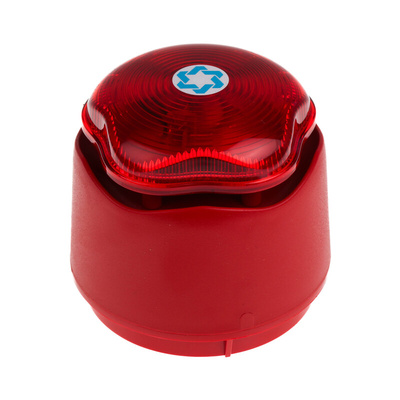

90010R0, Hosiden Besson Banshee Excel Lite Series Red Sounder Beacon, 9 → 30 V dc, Bayonet Mount, 110dB at 1 Metre

Hosiden Besson Sounder Beacon

The Hosiden Besson DC banshee excel lite sounder beacon is high-tech equipment with a red lens and 32 user-selectable tones with a choice of 3 volume levels. It uses the latest strobe technology and has a high sound output of 110dB. The sounder beacon will meet the majority of fire and security applications. This beacon has the option of the independent or combined operation.

Note:
To maintain an IP rating when using a deep base, use wall mounting bracket supplied. Do not drill fixing holes in a deep base
Use suitably rated 20mm cable glands to fit cables or conduit via side knockouts. Fit ’O’ Ring seal between lens and base

Features and Benefits

The supply voltage is between 9VDC and 30VDC
Shallow Base Moulding
Ultra low current consumption
Installation via side and rear cable entry
High power xenon beacon
Easy push and twist lockable bayonet mounting

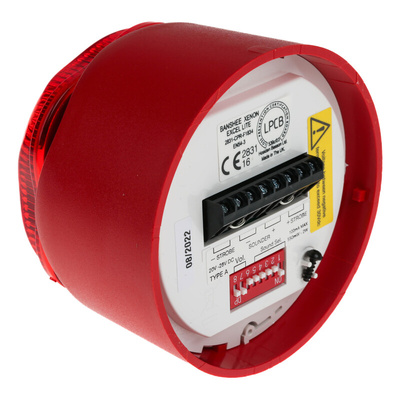

Simple in and out wiring blocks
Temperature ranges between -20°C and 55°C
Manufactured from a flame retardant polymer

Certifications

EN54-3 by LPCB
IP66 rated

Banshee Excel Lite Xenon Data Sheet
