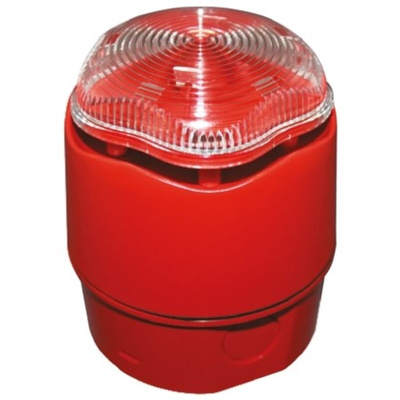

90011R5, Hosiden Besson Banshee Excel Lite Series Clear Sounder Beacon, 9 → 30 V dc, Bayonet Mount, 110dB at 1 Metre

Banshee Excel Lite Xenon Sounder / Beacon

The Banshee Excel Lite Sounder / Beacon from Hosiden Besson has 32 user selectable tones with a choice of 3 volume levels and uses the very latest strobe technology. Manufactured from a flame retardant polymer these sounder and beacon units are available with either a shallow or deep base and with the choice of a clear, amber or red coloured lens. The Banshee Excel Lite will meet the majority of Fire and Security applications and has the option of independent or combined operation.

Features and Benefits

EN54 - 3 approved by LPCB
Ultra low current consumption
32 user selectable tones
Choice of 3 volume levels
Rated IP66 for deep base and IP45 for shallow base units
Installation via side & rear cable entry
Easy push & twist lockable bayonet mounting
Temperature range from -20 to +70°C
Simple in & out wiring blocks

Note

To maintain IP rating when using a deep base, use wall mounting bracket supplied. Do not drill fixing holes in deep base. Use suitably rated 20mm cable glands to fit cables or conduit via side knock-outs. Fit ’O’ Ring seal between lens and base.

Approvals

EN54-3 by LPCB.
