90012R5, Hosiden Besson Banshee Excel Lite Sounder Beacon 110dB, Amber Xenon, 9 → 30 V dc

Hosiden Besson Sounder Beacon

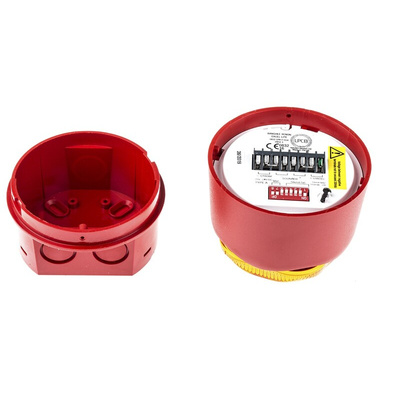

The Hosiden Besson DC banshee excel lite sounder beacon is high tech equipment with an amber lens and 32 user-selectable tones along with a choice of 3 volume levels. It uses the latest strobe technology and has a high sound output of 110dB. The sounder beacon meets the majority of fire and security applications and has an option of independent or combined operation as well.

Note:
To maintain an IP rating when using a deep base, use wall mounting bracket supplied. Do not drill fixing holes in a deep base
Use suitably rated 20mm cable glands to fit cables or conduit via side knockouts. Fit ’O’ Ring seal between lens and base

Features and Benefits

The supply voltage is between 9VDC and 30VDC
Ultra low current consumption
Installation via side and rear cable entry
High power xenon beacon
Easy push and twist lockable bayonet mounting
Simple in and out wiring blocks
Temperature ranges between -20°C and 70°C
Manufactured from a flame retardant polymer
It has a deep Base

Certifications

EN54-3
LPCB approved
CPD approved
Vds approved
IP66 rated
