90025R5, Hosiden Besson Banshee Excel Lite Series Red Sounder Beacon, 9 → 30 V dc, IP66, Bayonet Mount, 110dB at 1 Metre

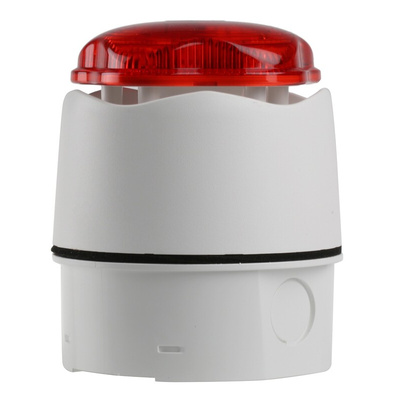

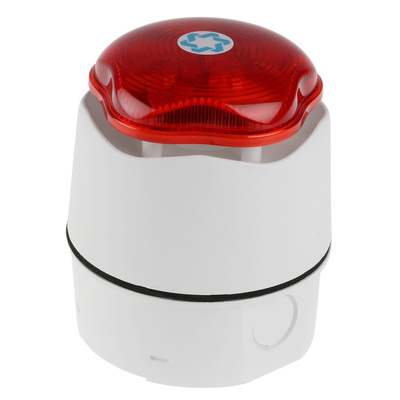

LED Banshee Excel Lite Sounder / Beacon

The Banshee Excel Lite Sounder / Beacon from Hosiden Besson is fitted with a Piezo Horn, has 32 user selectable tones and a choice of 3 volume levels. Manufactured from a flame retardant polymer these sounder and beacon units come with a red lens and are available with a shallow or deep base in either red or white. Stock numbers 755-4062 and 755-4074 are IP45 rated and have a shallow base. Stock numbers 755-4071 and 755-4078 are IP66 rated and have a deep base. The Banshee Excel Lite will meet the majority of Fire and Security applications and has the option of independent or combined operation.

Features and Benefits

EN54 - 3 approved by LPCB
Ultra low current consumption
Fitted with a Piezo Horn
32 user selectable tones
Choice of 3 volume levels
Rated IP66 for deep base and IP45 for shallow base units

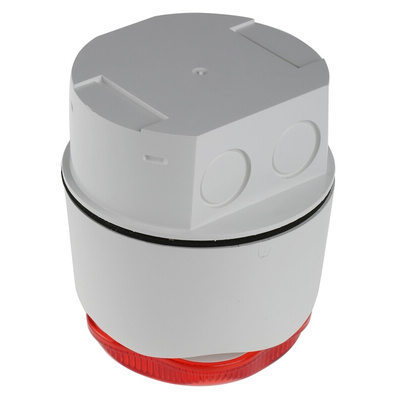

Installation via side & rear cable entry

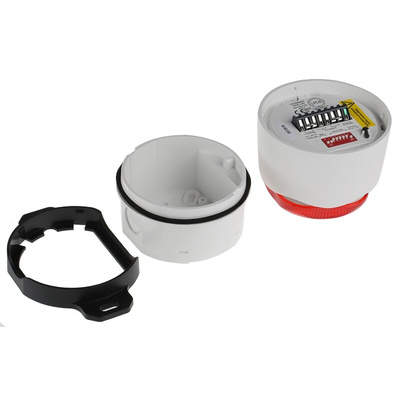

Easy push & twist lockable bayonet mounting
Temperature range from -20 to +70°C
Simple in & out wiring blocks

Note

To maintain IP66 rating when using a deep base, use wall mounting bracket supplied. Do not drill fixing holes in deep base. Use suitably rated 20mm cable glands to fit cables or conduit via side knock-outs. Fit ’O’ Ring seal between lens and base.

Approvals

EN54-3 by LPCB.
