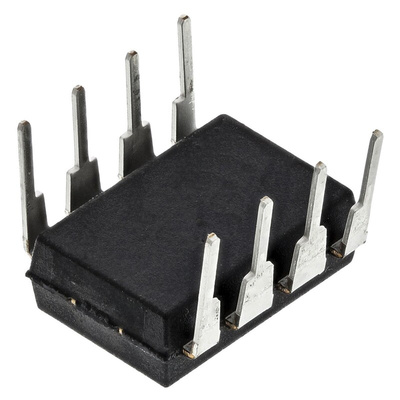

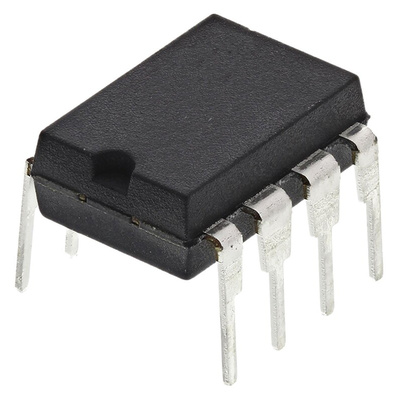

Microchip PIC10F322-I/P, 8bit PIC Microcontroller, PIC10F, 16MHz, 512 words Flash, 8-Pin PDIP, Микроконтроллер

PIC10F32x 8-Bit Mid-Range PIC® Microcontrollers

The PIC10F32x family features Microchip’s popular Mid Range core, which adds interrupt capability, a deeper hardware stack and 35 14-bit instructions. More specifically, the 10F32x family offers up to 0.875Kb Self Read/Write program memory, up to 64 Bytes data memory, wider operating voltage (1.8 - 3.6V LF parts, and 2.3 - 5.5V F parts) and a faster Internal RC oscillator, which is configurable between 31kHz and 16MHz. Microchip’s CLC (Configurable Logic Cell) was introduced first on the PIC10F32x, this was in addition to other Core Independent Peripherals including the CWG (Complementary Waveform Generator) and NCO (Numerically Controlled Oscillator). As with the PIC10F2xx family, there are alternative packages (PDIP and 2x3DFN) and ICD support through use of ICD Interface Header AC244045 (RS 765-2737).

PIC10F Microcontrollers (MCUs) are the lowest pin count variants of Microchip’s extensive range of 8–Bit MCUs. These ultra-low-cost devices have allowed the engineering community to use MCUs in applications that have historically been devoid of such devices. The 6-pin SOT23 package is an ideal fit where cost/space and functionality are the key considerations.
