LEDD125-02-03, Moflash LEDD125 Series Blue Multiple Effect Beacon, 24 V dc, Base Mount, LED Bulb, IP65, Маячок

Moflash Multi-Function LED Beacon - LEDD125 Series

The LEDD 125 Beacons are suitable for fire, security and industrial applications. These beacons offer three alternative light modes: Continuously ON, Rapid Flash (120 FPM) and Standard Flash (60FPM), which can be selected by a dip switch mounted lens side on the PCB. The AC units are supplied with one meter of flying lead, while the DC units allow for termination inside the base enclosure. An M12 sealing grommet in the base allows for cable entry.

100000 hours life for LED
48 LED array ultra bright
360° visibility
Continuously ON, rapid flash (120 FPM) or standard flash (60FPM)
3 point fixing
UV stable polycarbonate lens and ABS base
IP65 protection
RoHS compliant
CE marking

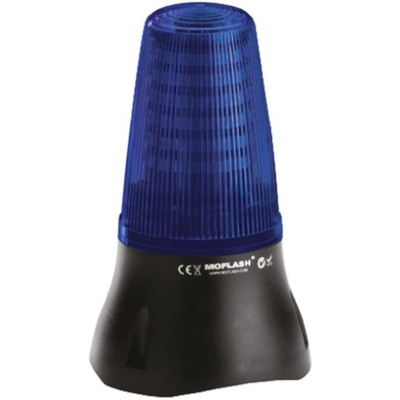

Moflash Multifunction Blue LED Beacon, 24V DC, 162mm Height - LEDD125 Series - LEDD125-02-03

This LED (light-emitting diode) beacon from Moflash emits a bright blue light to indicate a change in equipment operation, such as powering down. The LED bulb is housed within a tough polycarbonate (PC) lens to protect it against impact. It can be set to a continuous light mode, a standard flashing mode at 60FPM (flashes per minute) or a rapid flashing mode at 120FPM for a more urgent signal. The beacon has a broad operating temperature range of -25ºC to +45ºC, so it's suitable for use in demanding environments, ranging from cold storage units to hot warehouses.

Features & Benefits

• IP65 (ingress protection) rating means it's protected against dust and low-pressure water jets
• ABS (acrylonitrile butadiene styrene) plastic base and polycarbonate lens are ultraviolet (UV) stable to prevent discolouration and warping in sunlight
• Suitable for wall or surface mounting for versatile installation

Applications

• Machine parts manufacturing
• Maintenance work
• Emergency response vehicles
• Manufacturing lines

Is this beacon energy-efficient?

Yes, thanks to its low current consumption of just 170mA, it's an energy-efficient option.
