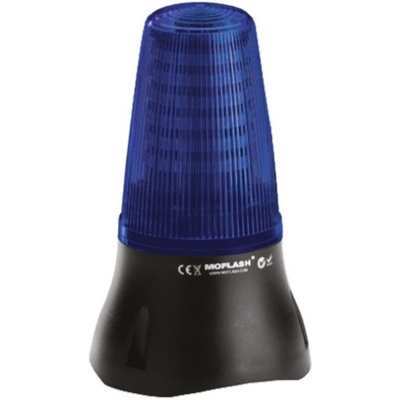

LEDD125-04-03, Moflash LEDD125 Series Blue Multiple Effect Beacon, 230 V ac, Base Mount, LED Bulb, IP65, Маячок

Moflash Multi-Function LED Beacon - LEDD125 Series

The LEDD 125 Beacons are suitable for fire, security and industrial applications. These beacons offer three alternative light modes: Continuously ON, Rapid Flash (120 FPM) and Standard Flash (60FPM), which can be selected by a dip switch mounted lens side on the PCB. The AC units are supplied with one meter of flying lead, while the DC units allow for termination inside the base enclosure. An M12 sealing grommet in the base allows for cable entry.

100000 hours life for LED
48 LED array ultra bright
360° visibility
Continuously ON, rapid flash (120 FPM) or standard flash (60FPM)
3 point fixing
UV stable polycarbonate lens and ABS base
IP65 protection
RoHS compliant
CE marking

Moflash Blue LED Multiple Effect Beacon, 98mm Base Diameter, Base Mount- LEDD125 Series - LEDD125-04-03

Make sure no one misses a process change with this blue visual safety device from Moflash. The 48 LED (light-emitting diode) array and 162mm-tall unit shape maximise brightness and visibility, while the cone shape allows for clear 360° signalling. This versatile beacon has three lighting options to choose from. Use a simple jumper link on your PCB (printed circuit board) to select a continuous, rapid 120FPM (flashes per minute) or standard 60FPM beam. The robust light is housed in a UV (ultraviolet) stable polycarbonate (PC) lens to prevent fading.

Features & Benefits

• LEDs lifespan of 100,000 hours for reliably long service
• Suitable for surface or wall mounting to give greater installation flexibility
• Comes with a one-metre flying lead and three slotted fixing holes for simple installation
• IP65 (ingress protection) rating makes it dust and moisture-resistant for use in demanding conditions
• ABS (acrylonitrile butadiene styrene) base for maximum durability

Applications

• Fire alarm systems
• Process and control automation
• Manufacturing and packaging industries

Can I use this beacon in a cold industrial environment?

Yes, this unit is a reliable choice for cold settings as it has a minimum operating temperature of -20°C. It can also be used safely at temperatures up to +45°C.
