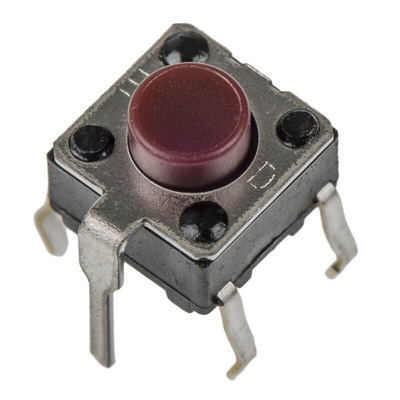

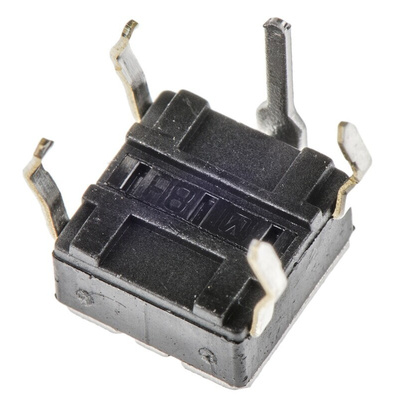

EVQPBG05R, Panasonic Red Push Plate Tactile Switch, SPST 20 mA 5mm, Тактильный переключатель

Panasonic THT Tact Switches - EVQ Series

Panasonic Light Touch switches, commonly referred as Tactile or Tact switches, are momentary snap action switches to be used with small currents (rated at 20mA 15Vdc). These Tact Switches provide a unique sharp, clear and assuring click operating feel, have low contact resistance, small bouncing noise, high contact \nreliability and come in a wide selection of operating forces.
This THT range of Tactile Switches have features that include options such as small form factor, side operated versions, low and long travel (stroke), as well as straight and snap-in terminal mounting options.

Assuring click feel
Various push plate colours
Wide range of operating forces
Low contact resistance
Long life
Single pole with normally open contacts

Note

Stock number 756-1552 (EVQPBG05R) is fitted with a ground terminal.

Tactile

Datasheet
