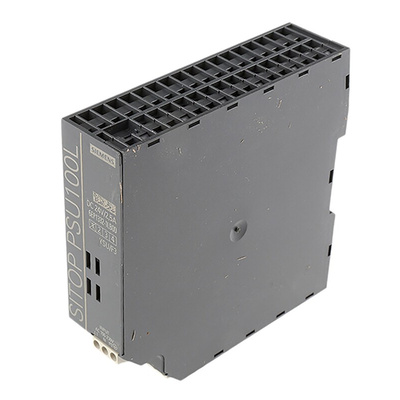

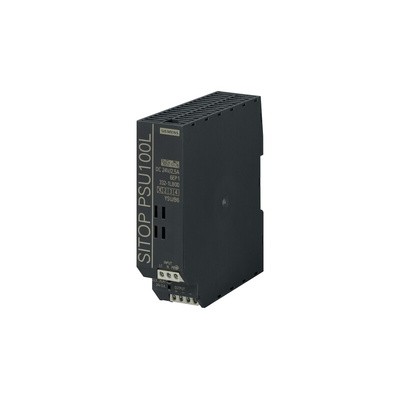

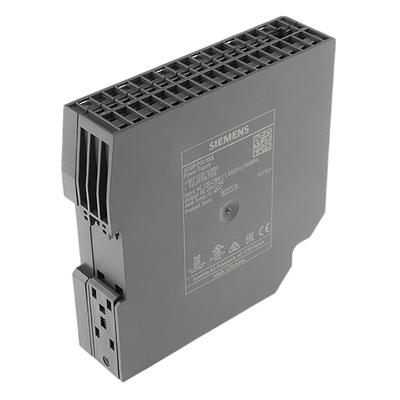

6EP1332-1LB00, Siemens SITOP PSU100L Switch Mode DIN Rail Power Supply, 93 → 132V ac ac Input, 24V dc dc Output, 2.5A Output,, Блок питания

Siemens DIN Rail Power Supply, 0.65 to 1.1A Input Current Rating, 10mV Typical Residual Ripple - SITOP PSU100L Series - 6EP1332-1LB00

Need a space-saving energy source for your electrical components? This DIN rail power supply from Siemens is the answer. A voltage input of 120V or 230V AC gives you a stable DC output of 24V and 2.5A, delivering reliable power to compatible circuits. With its compact size of 32.5 (W) x 125 (H) x 120mm (D), the unit fits easily into tight work areas. You'll find devices like this one used in applications such as process control, power distribution and factory automation.

• Operating temperature range from 0°C to +60°C for use in harsh conditions
• Mean time between failures of 3,153,082 hours at +40°C, so it's reliable over long periods
• IP20 rating means it's touch-proof and shielded from objects larger than 12mm
• Green LED indicator for easy status monitoring

How efficient is this power supply?

This power supply has a high efficiency rating of 85%, so it's energy-saving.

Can I use this product in humid work areas?

Yes – it has a wide operating humidity range between 5 and 95% RH so it functions in areas where there are high levels of non-condensing water vapour.

Sitop PSU100D 6EP13321LB00 Data Sheet

Catalogue - Power Supply

Manual - 6EP1332-1LB00
