SSF212X100-14G, Sensata / Cynergy3 Sensata/Cynergy 3 SSF212 Series Horizontal Stainless Steel Float Switch, Float, 1m Cable, NO/NC, 300V ac Max, 350V dc

Cynergy3 SSF211 and SSF212 Horizontal Float Switches

From Cynergy3, the SSF211 series and SSF212 series are horizontal float switches. They operate in liquids with Specific Gravity (SG) of 0.8 or above. These float switches are constructed from a reed switch and pivoted actuator magnet. SSF211 and SSF212 switches feature an N/C (normally closed) contact.

SSF211 float switches are designed for horizontal mounting within a tank. They are only suitable for applications where you have suitable access to the inside of the tank so that you can fit them. SSF212 float switches can be mounted from outside the tank and do not require access.

Features & Benefits

• While supplied with an N/O contact, you can easily configure this to N/C (normally closed) by inverting the switch by 180° when you mount it. Instead of the float moving in a downwards direction as standard, it would move in an upwards direction away from the main body of the switch.
• These float switches feature a compact design at only 47 mm long.
• The stem is constructed from SS304 stainless steel while the float is made from SS316 stainless steel. This ensures that these limit switches are suitable for use in the most rugged environments.
• All SSF211 float switches are fitted with a 1 m long 17/0.10 (AWG22) cable. They can be fitted internally via a 1/8” BSP thread.
• SSF212 float switches are fitted with a 1 m long 17/0.10 (AWG22) cable, plug and socket or M12 socket. This varies by model. They can be externally fitted via a 1/2” NPT thread.

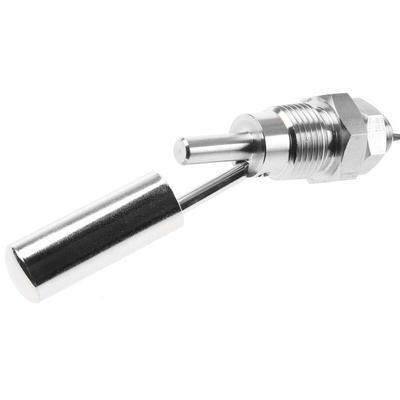

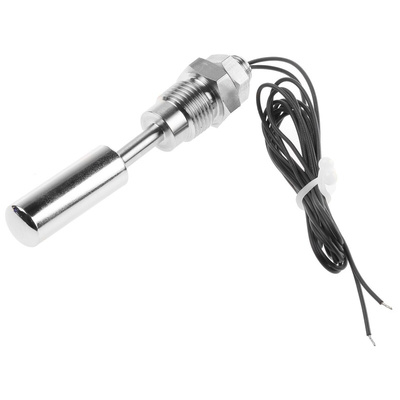

Sensata Cynergy3 Horizontal Float Switch, 300V AC, 10 Bar - SSF212 Series - SSF212X100-14G

Use this horizontal float switch from Sensata Cynergy3 for precise liquid level detection in industrial tanks. You can use this sensor to keep levels in tanks within safe parameters, preventing underfills or overfills. It works by triggering the opening or closing of valves when fluid reaches a predetermined level. For versatility, you can change its operation from NO (make on rise) to NC (make on fall) or vice versa by simply rotating the switch 180º. This component is commonly used in water treatment facilities as well as in chemical processing plants.

Features & Benefits

• Maximum switching current of 500mA for energy efficiency
• Ample cable length of 1m for a flexible connection
• Stainless steel body for durability and resistance to corrosion
• Tinned copper conductors for high conductivity to ensure a reliable connection

How do I mount this float switch?

This float switch is designed for mounting from the outside of the tank via a 1/2-inch NPT thread. This makes it a good option for situations where you don't have access to the interior of a tank.

SSF212X100-14G Stainless Steel Float Switch Datasheet
