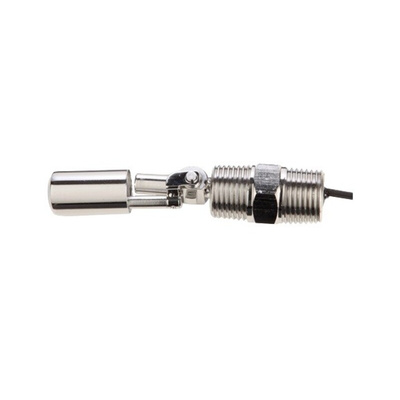

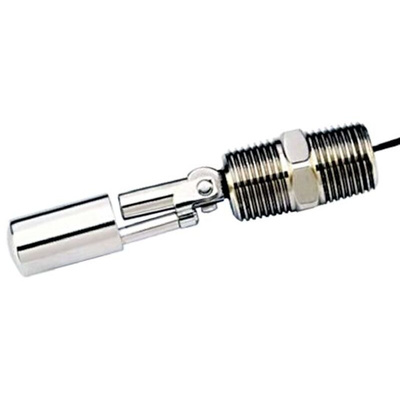

SSH66TU12N100S, Sensata / Cynergy3 Sensata/Cynergy 3 SSH66TU Series Horizontal Stainless Steel Float Switch, Float, 1m Cable, NO/NC, 24V ac Max, 24V dc Max

Horizontal Float Switches - Short Float

The SSH6TU series of horizontal float switches have a short float and can be fitted internally or externaly via 1/2in NPT threads.

304 grade stainless steel construction
Operating temperature to 120 °C
NO or NC switching action

Sensata Cynergy3 Float Switch, Stainless Steel, 1m Cable - SSH6TU Series - SSH66TU12N100S

This Sensata Cynergy3 float switch lets you monitor and measure liquid levels in your tanks. It features a pivoting actuator with a magnet that moves as the liquid rises and falls and a sensor that opens and closes the switch's contacts. It comes with a long 1m cable for an easy reach to external devices or counterweights. The switch is suitable for internal or external mounting, so you can install it according to the set-up of your system. You can use this switch in applications such as vending machines, sump pumps and industrial heating systems.

Features & Benefits

• Stainless steel body is durable and resistant to corrosion for reliable performance
• Supports NO (normally open) or NC (normally closed) operation for versatility
• 1/2-inch NPT (National Pipe Thread) connection for a secure attachment
• Cable sheathed in a durable cross-linked polyethylene (XLPE) material for reliable insulation and thermal resistance

Can I use this product in high-pressure applications?

Yes. A maximum pressure rating of 10 bar means you can use this float switch in high-pressure systems.
