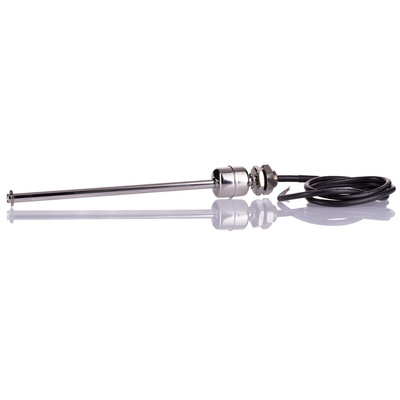

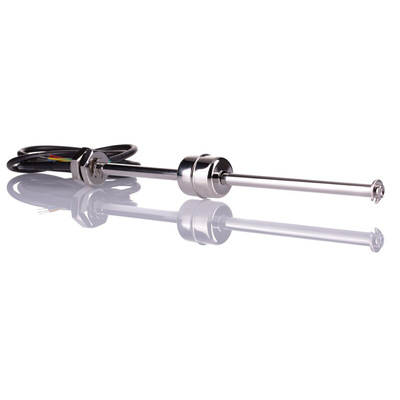

SSF67A25B200, Sensata / Cynergy3 SSF67 Series Vertical Stainless Steel Float Switch, Float, 1m Cable, NO/NC, 250V ac Max, 120V dc Max

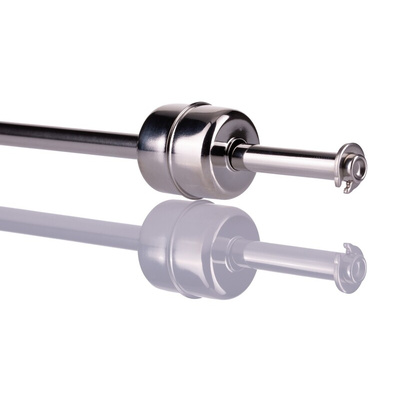

Dual Position Stainless Steel Float Switch

Designed to give the user a number of switching options to cater for a variety of system requirements. These switches are most suited for use with aggressive liquids and hygienic applications.

Two Independent Switching Points
Lower Float Make on Fall, and Upper Float Make on Rise
Minimum Fluid SG: 0.80
Switch Differential (each level) Nominal: 1mm
Suitable for High and Low Level Alarm and Control Signal
Stainless Steel 316L for Use with Aggressive Liquids, or in Hygienic Applications
Vertical Mounting, M16 x 2 Thread
Temperature Range: -20 to +135°C
Nitrile Gasket
’Safe Area’ for Use in Petrochemical, Storage, and Process Control Applications

Note

All ratings in tech. spec. table are for resistive loads only

Warning

The Cable entry point must NOT under any circumstances be submerged.
On the Horizontal switches they must be fitted through the wall of a tank so that the cable is on the outside.
On the vertical type the mounting thread and cable entry must be above the highest level of the liquid.

Sensata Cynergy3 Float Switch, 10 Bar Maximum Operating Pressure, 227mm Length - SSF67 Series - SSF67A25B200

Control the level of fluid in your application with this float switch from Sensata Cynergy3. It’s mounted vertically inside your tank from the top or bottom, so it's a good option when side access is inconvenient. Thanks to its 316-grade stainless steel body, it's durable and corrosion-resistant for use in demanding environments. When connected to an alarm or control system, it alerts you when liquid rises or falls outside a pre-set range, helping to prevent underfilling and overfilling.

Features & Benefits

• Maximum pressure of 10 bar for use in heavy-duty applications

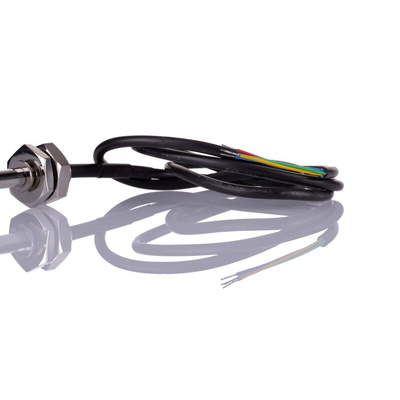

• Cable length of 1m for an easy connection to the control circuit
• Nitrile gasket is resistant to chemicals and moisture for a leakproof seal
• EFTE cable sheath for effective insulation and resistance to chemicals
• Maximum switching voltage of 250V AC and 120V DC for use in low-power systems

How do I install this unit?

This float switch is designed for mounting on the inside of your tank. When installing it, ensure that the M16 thread and cable entry are placed above the highest level of the liquid.
