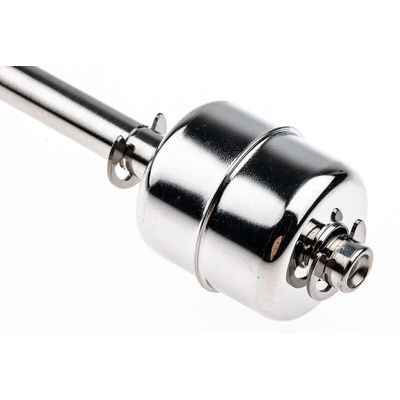

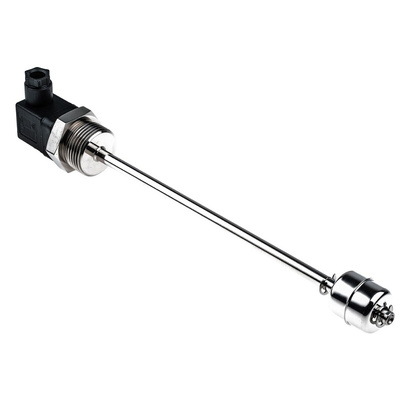

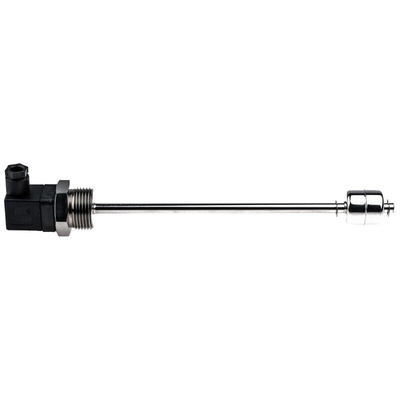

SSV66A200E1GP, Sensata / Cynergy3 Sensata/Cynergy 3 SSV66A-1G Series Vertical Stainless Steel Float Switch, Float, NO/NC, 300V ac Max, 300V dc Max

Sensata Cynergy3 Vertical Float Switch, Stainless Steel, 300 V - SSV66A-1G Series - SSV66A200E1GP

Regulate the liquid content of a tank with this vertical float switch from Sensata Cynergy3. As it automatically responds to low or high liquid levels outside a pre-set range, it reduces the need for manual operation and prevents underfilling or overfilling. The switch has a 1-in BSP (British Standard Pipe) thread that allows you to secure the float mechanism in place from the outside of the tank. This makes it a good choice for situations where you don't have access to the interior of the tank.

Features and Benefits

• DIN 43650 connector for simple connection to a power source
• Adjustable switch action between NO (normally open) and NC (normally closed) positions for versatility
• Stainless-steel body material for durability and resistance to corrosion
• Maximum operating temperature of +120°C for use in high-temperature environments

How do I set this switch from NO to NC and vice versa?

To switch between the NO and NC positions, simply remove the float mechanism, rotate it by 180° and reattach it to the tank.

SSV66A-1G Series Vertical Float Switch Datasheet

Brochure - Level Sensors and Switches

Installation Guide
