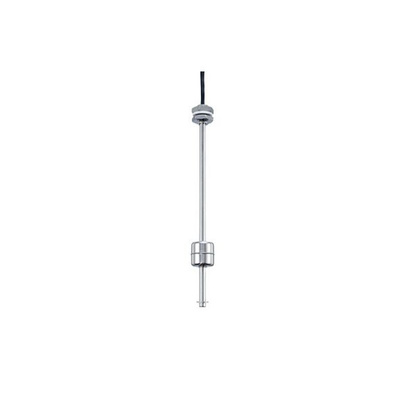

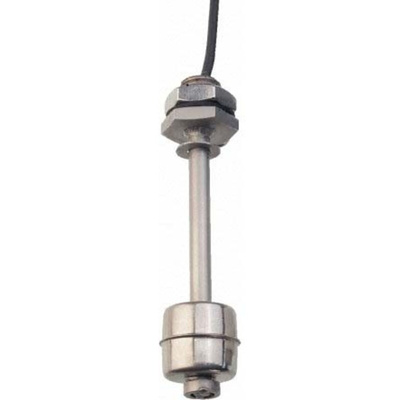

SSF67A25B225, Sensata / Cynergy3 Sensata/Cynergy 3 SSF67 Series Vertical Stainless Steel Float Switch, Float, 1m Cable, NO/NC, 250V ac Max, 120V dc Max

Dual Position Stainless Steel Float Switch

Designed to give the user a number of switching options to cater for a variety of system requirements. These switches are most suited for use with aggressive liquids and hygienic applications.

Two Independent Switching Points
Lower Float Make on Fall, and Upper Float Make on Rise
Minimum Fluid SG: 0.80
Switch Differential (each level) Nominal: 1mm
Suitable for High and Low Level Alarm and Control Signal
Stainless Steel 316L for Use with Aggressive Liquids, or in Hygienic Applications
Vertical Mounting, M16 x 2 Thread
Temperature Range: -20 to +135°C
Nitrile Gasket
’Safe Area’ for Use in Petrochemical, Storage, and Process Control Applications

Note

All ratings in tech. spec. table are for resistive loads only

Warning

The Cable entry point must NOT under any circumstances be submerged.
On the Horizontal switches they must be fitted through the wall of a tank so that the cable is on the outside.
On the vertical type the mounting thread and cable entry must be above the highest level of the liquid.

Sensata Cynergy3 Vertical Float Switch, 10 Bar, 600mA - SSF67 Series - SSF67A25B225

Looking for a compact and accurate liquid level detection and control solution for your fluid systems? Choose this vertical float switch from Sensata Cynergy3. The device triggers the opening and closing of valves to ensure the liquids in your tank stay at an appropriate level. A stainless steel body makes this float switch durable and resistant to corrosion for reliable long-term performance. It can withstand process temperatures of up to +135°C, so it's a practical choice for use in applications involving hot liquids, such as boilers and tanks in the petrochemical industry.

Features & Benefits

• Ample cable length of 1m for a flexible electrical connection
• Maximum operating pressure of 10 bar for use in heavy-duty applications
• ETFE (ethylene tetrafluoroethylene) cable sheath for resistance to heat and chemicals
• Tinned copper conductors for a reliable connection
• Maximum switching current of 600mA for energy-efficient operation

What's the voltage rating of this float switch?

This float switch has a voltage rating of 250V AC and 120V DC. This makes it a practical choice for low-power applications.

SSF67 Series Stainless Steel Float Switch Datasheet
