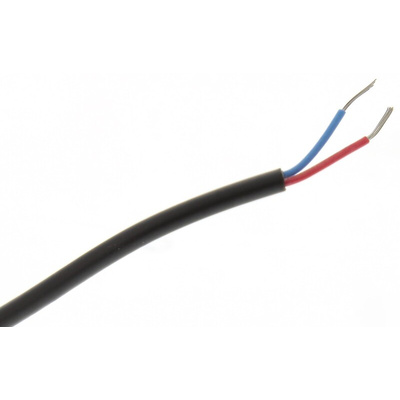

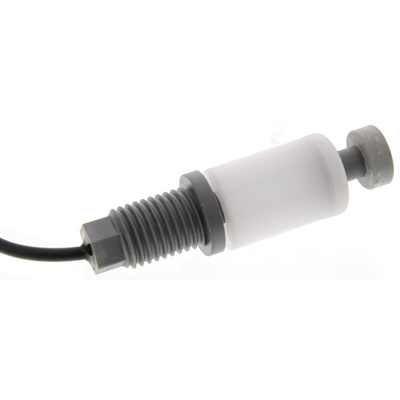

RSF104Y100JN, Sensata / Cynergy3 Cynergy3 RSF100 Series Vertical Polypropylene Float Switch, Float, 1m Cable, NO/NC, 240V ac Max, 120V dc Max

Sensata Cynergy3 Vertical Float Switch, 600mA, Polypropylene - RSF100 Series - RSF104Y100JN

This float switch from Sensata Cynergy3 monitors liquid levels in your container. It helps prevent overflow hazards in water catchment areas and can also be used to keep track of liquid volume when emptying or filling a tank. Any changes in level are detected by the sensor component that floats on the liquid surface. It then signals the switch to open or close your circuit when the levels reach a certain point. It's commonly used in fire water towers and cisterns, as well as to detect leaks in water tanks.

Features & Benefits

• PP (polypropylene) body material for resistance to abrasion
• Broad operating temperature range of -20°C to +100°C for use in demanding environments
• Mounts externally for use with tanks where there's no access to the interior
• Compact dimensions of 75 (length) x 21.5mm (width) to save space

Does this switch resist leaks?

Yes, the M12 connector terminal resists leaks using a nitrile rubber gasket ring that fits between the components. This material is resistant to water and oil, ensuring a secure and durable seal.

RSF100 Series External Mount Mini Switch Datasheet

Selection Guide - RSF88YP

Information Sheet - ILSE-G0100-5
