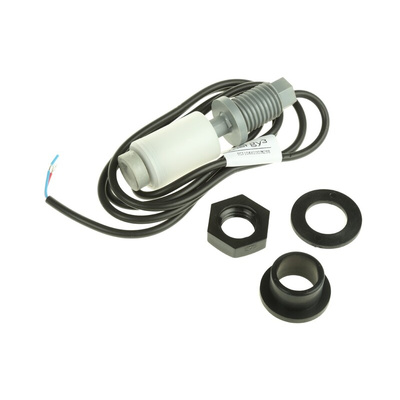

RSF104H100JN, Sensata / Cynergy3 Sensata/Cynergy 3 RSF100 Series Vertical Polypropylene Float Switch, Float, NO/NC, 300V ac Max, 300V dc Max

Sensata Cynergy3 External Vertical Float Switch, 100VA, NO/NC - RSF100 Series - RSF104H100JN

This float switch from Sensata Cynergy3 is designed to regulate the level of liquid in a tank. It features a floating element that rests on the surface of the liquid and sends a signal to the control unit if it senses a rise or fall in the liquid. For versatility, you can switch between NO and NC operation by simply inverting the float and reattaching it to the stem. It features a robust nitrile gasket that's resistant to wear and chemicals to protect your system against leakage. Use this float switch for applications such as commercial appliances and chemical plants.

Features & Benefits

• Polypropylene body is resistant to chemicals and corrosion
• Broad operating temperature range between -20°C and +100°C for use in demanding conditions
• Maximum switching power of 100VA for use in high-power systems

How do I mount this float switch?

Thanks to its vertical design, you can mount this float switch at the top or bottom of the tank's exterior, eliminating the need to access the inside of the tank. It comes with a compression seal for secure mounting.

RSF100 Series External Mount Mini Switch Datasheet

Selection Guide - LEVEL SENSORS & SWITCHES
