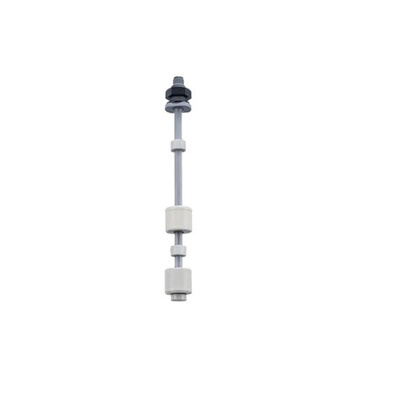

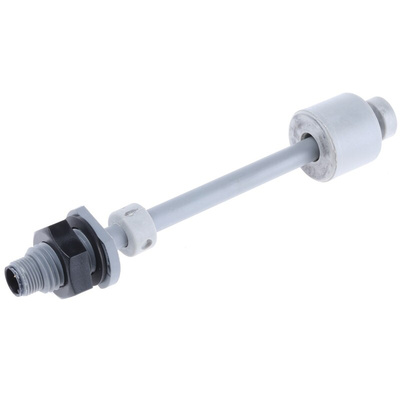

RSF66A25B100P, Sensata / Cynergy3 Sensata/Cynergy 3 RSF66P Series Vertical Polyphenylene Sulfide Float Switch, Float, NO/NC, 240V ac Max, 120V dc Max

Sensata Cynergy3 Vertical Float Switch, NO/NC, 600mA - RSF66P Series - RSF66A25B100P

Use this Sensata Cynergy3 vertical float switch to accurately monitor the liquid levels in your tanks. It's made of polyphenylene sulfide (PPS) for resistance to chemicals and wear, making it compatible with a wide range of liquids such as oils and printing solutions. For enhanced control, you can use this float switch with a PLC (programmable logic controller) to manage liquid levels. You'll commonly find this type of float switch used in applications such as dishwashers or wells.

Features & Benefits

• Designed for vertical mounting at the top or bottom of the tank for situations where there's no side access
• Wide operating temperature range of -10°C to +85°C for use in cold and hot environments
• Maximum switching current of 600mA for energy efficiency

How does a float switch work?

A float switch combines the functions of a float, magnet and reed switching system to automatically open and close with the rise and fall of liquid levels in a container. This mechanism triggers alarms during overflows or signals when to empty and fill tanks.

RSF66P Series with M12 Connection Datasheet
