RSF66A25B125P, Sensata / Cynergy3 RSF66P Series Vertical Polyphenylene Sulfide Float Switch, Float, NO/NC, 240V ac Max, 120V dc Max

Vertical Float Switches - Dual Switching Point

The RSF66 float switches are made from PPS (Polyphenylene Sulphide) therefore suitable for use with a wide range of liquids. The float switches also offer a number of switching positions and therefore meet a variety of system needs.

High and low level switching
Filling or emptying control versions
M12 4 pin connection for quick connection
Grey

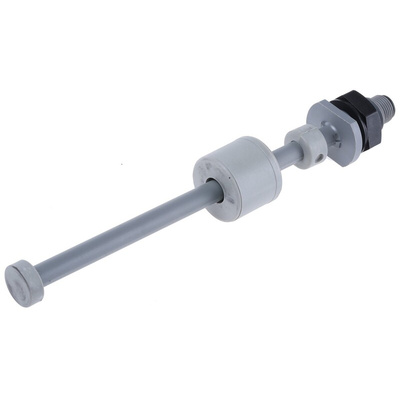

Sensata Cynergy3 Vertical Float Switch, NO/NC, 600mA - RSF66P Series - RSF66A25B125P

Monitor liquid levels in your tank or well with this float switch from Sensata's Cynergy3 range. It consists of a pivoting actuator with an integrated magnet that rises and falls with the fluid in a tank. The corresponding sensor reacts to the changing magnetic field to open or close the switch's contacts and activate or deactivate your electrical circuit. To protect against leaks, it has a nitrile gasket that forms a watertight seal and is resistant to wear and chemicals. It's particularly useful for automated pumps or warning systems, as well as vending machines and industrial heating equipment.

Features & Benefits

• M12 4-pin plug for a simple, tool-free connection
• NO/NC (normally open/normally closed) configuration for versatile use

What temperatures can this switch be used in?

This switch has a wide operating temperature range of -10°C to +85°C, making the switch suitable for use in extreme temperatures.

What's the switch made from?

The switch's body is constructed from a robust polyphenylene sulfide (PPS) material, which offers chemical resistance and electrical insulation for reliable use in harsh conditions.
