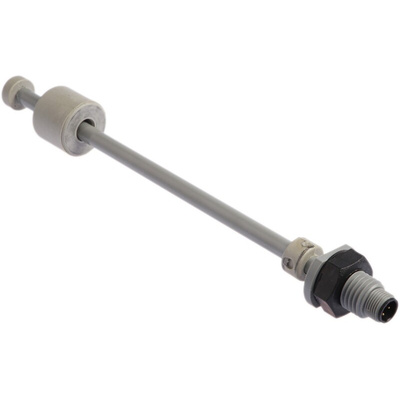

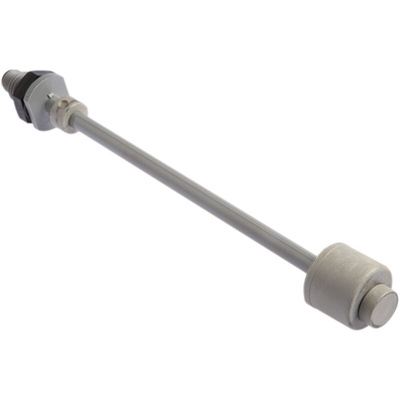

RSF66A25B175P, Cynergy3 Vertical Float Switch, Polyphenylene Sulfide, NO/NC, Float

Cynergy3 Float Switch

The Cynergy3 RSF66P series float switch is a vertical mount type and has NO/NC output configuration. This float switch has a polyphenylene sulphide body. The switch has an upper level is 30mm and the lower level is 175mm. It is designed for several switching options to meet a variety of system requirements. The dual float versions can be used for controlling the filling or emptying of tanks via electromechanical relays. It is used for high and low-level switching.

Features and Benefits

Minimum fluid SG is 0.85
M12, 4-pin connection for quick connection to circuit
Operating temperature ranges between -10°C and 85°C
Total length is 202mm
Maximum switching power is 25VA

Certifications

WRAS approved
NSF approved
UL listed

Datasheet
