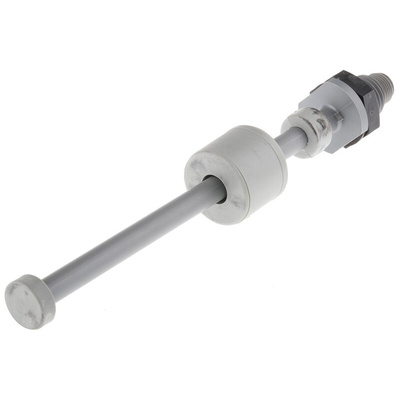

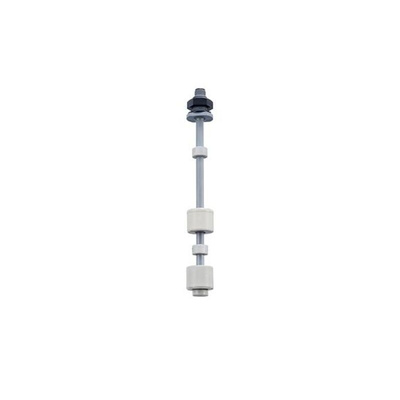

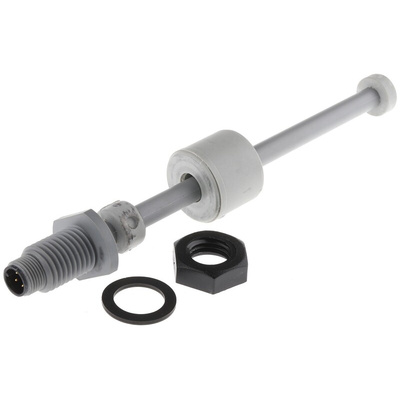

RSF66B50B150P, Sensata / Cynergy3 Cynergy3 RSF66P Series Vertical Polyphenylene Sulfide Float Switch, Dual Float, 2NC, 240V ac Max, 120V dc Max

Sensata Cynergy3 Vertical Float Switch, 2NC, 600mA - RSF66P Series - RSF66B50B150P

Reliably control the filling of your industrial container with this vertical float switch from Sensata Cynergy3. The float lies on top of the liquid, and its internal magnet causes the switch reed to turn when the liquid levels change. You can install it on the top or the bottom of your tank, making it a practical solution for tanks with no side access. It's compatible with a wide variety of liquids, including vegetable oil, brake fluid and fresh water, so it can be used in applications such as food manufacturing and vehicle maintenance.

Features & Benefits

• Wide operating temperature range of -10°C to +85°C for use in demanding environments
• M12 connector for a quick and simple electrical connection
• Nitrile gasket material stops liquids in the tank from leaking through the fitting
• PPS (polyphenylene sulfide) body material is resistant to heat and chemicals

What's the switch configuration of this float switch?

This float switch has a switch output configuration of 2NC (normally closed), so it's suitable for use in applications that need the electrical current to be kept active throughout use.

RSF66P Series with M12 Connection Datasheet

Information Sheet - ILSE-G0100-5
