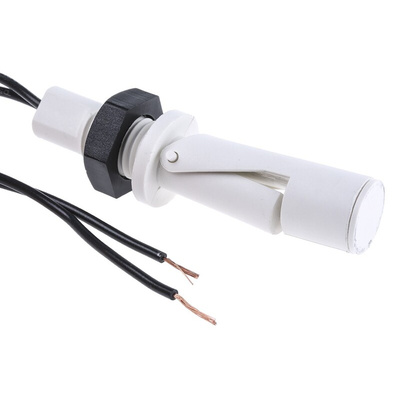

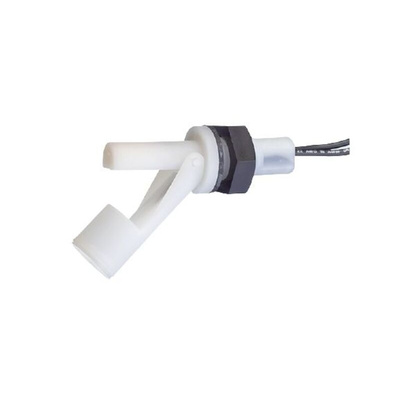

RSF48H100RF, Cynergy3 RSF40 Series, Reed Horizontal Internal Mounting Level Switch NO/NC Output

Cynergy3 Float Switch

The Cynergy3 float switch is a compact internal RSF fitting device, with a wide range of options, making it ideal for size sensitive applications. Mounting of this series requires access to the inside of the tank. The switch action may be reversed by rotating the device by 180°. It is available with an M12 socket for electrical connection. It is available in PP material. The switch action can be reversed by mounting the float switch with the float able to move upwards away from the body instead of downwards.
WRAS approval explained
WRAS is the standard against waste, misuse, undue consumption or contamination of the water supply and must have appropriate quality and standard.
What materials can you choose from?
Nylon
Polypropylene
Polypropylene Sulfide (PPS)
Typical applications
These Cynergy3 horizontal switches are most likely to be used in vending machines, commercial washing machines and evaporator units.
Note:
It is suitable for signal switching and uses with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e. G. filament lamps) loads.
This float switch is designed for internal fitting inside a tank. It is fitted in a 16.5mm dia. hole in the tank from the inside and secured by a nylon nut on the outside.
PP material
Internal mounting
100cm PVC flying leads
Product application information
This PP float switch is most suitable for use in water, detergents, and vegetable oils, some organic and inorganic chemicals.

Features and Benefits

Operating temperature ranges between -10°C and 120°C
N/O or N/C switch output
Choice of gasket materials: Silicone, nitrile, Viton or combination of silicone and nitrile
Flying Lead
Internal and external fitting inside a tank
Cost-efficient, compact design

Applications

Vending machines
Commercial washing machines
Evaporator units

Certifications

UL approved
WRAS approved
NSF approved
