RSF66B50B100P, Sensata / Cynergy3 Sensata/Cynergy 3 RSF66P Series Vertical Polyphenylene Sulfide Float Switch, Float, 2NC, 240V ac Max, 120V dc Max

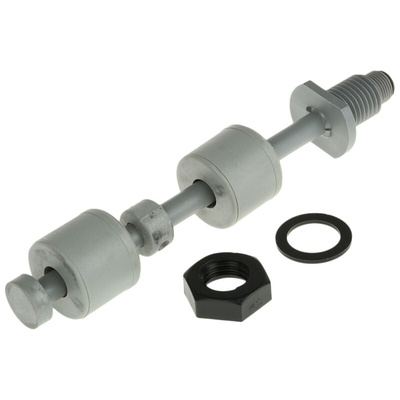

Sensata Cynergy3 Dual Float Switch, 600mA, 2NC - RSF66P Series - RSF66B50B100P

Prevent overfilling in your tank using this dual float switch from Sensata Cynergy3. Its rugged polyphenylene sulfide body offers resistance to chemicals and solvents for durability in heavy-duty applications. This unit features an integrated M12 4-pin connector so you can easily attach it to an electrical circuit. For enhanced control over filling and emptying, you can connect this switch to an electromechanical relay. You'll commonly find this type of float switch used in industrial washers and domestic appliances.

Features & Benefits

• Durable nitrile gasket seal to prevent leakage
• Maximum switching current of 600mA for energy-efficient use
• Vertical mounting design enables use in tanks without side access
• Broad operating temperature range between -10°C and +85°C for use in demanding environments

How does a dual float switch work?

A dual float switch like this one features two fixed switching points to detect the rise and fall of the liquid in the tank. The upper switch level is 50mm while the lower switch level is 100mm, helping to ensure that liquid levels stay within an appropriate range.

RSF66P Series with M12 Connection Datasheet
