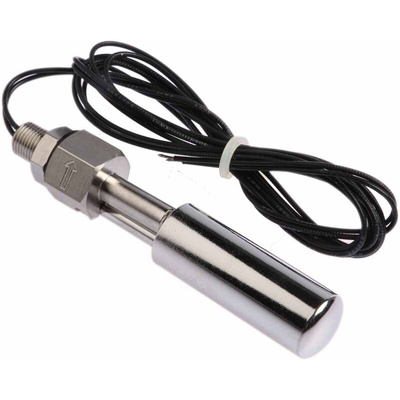

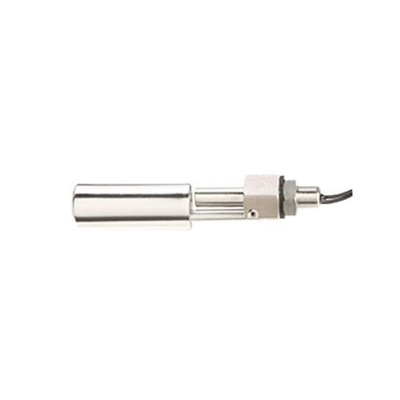

SSF211X100H, Sensata / Cynergy3 Cynergy3 SSF211 Series Horizontal Stainless Steel Float Switch, Float, 1m Cable, NO/NC, 300V ac Max, 300V dc Max

Cynergy3 SSF211 and SSF212 Horizontal Float Switches

From Cynergy3, the SSF211 series and SSF212 series are horizontal float switches. They operate in liquids with Specific Gravity (SG) of 0.8 or above. These float switches are constructed from a reed switch and pivoted actuator magnet. SSF211 and SSF212 switches feature an N/C (normally closed) contact.

SSF211 float switches are designed for horizontal mounting within a tank. They are only suitable for applications where you have suitable access to the inside of the tank so that you can fit them. SSF212 float switches can be mounted from outside the tank and do not require access.

Features & Benefits

• While supplied with an N/O contact, you can easily configure this to N/C (normally closed) by inverting the switch by 180° when you mount it. Instead of the float moving in a downwards direction as standard, it would move in an upwards direction away from the main body of the switch.
• These float switches feature a compact design at only 47 mm long.
• The stem is constructed from SS304 stainless steel while the float is made from SS316 stainless steel. This ensures that these limit switches are suitable for use in the most rugged environments.
• All SSF211 float switches are fitted with a 1 m long 17/0.10 (AWG22) cable. They can be fitted internally via a 1/8” BSP thread.
• SSF212 float switches are fitted with a 1 m long 17/0.10 (AWG22) cable, plug and socket or M12 socket. This varies by model. They can be externally fitted via a 1/2” NPT thread.

Sensata Cynergy3 Horizontal Float Switch, 300V AC/DC, 5 Bar - SSF211 Series - SSF211X100H

Control liquid levels in your industrial fluid systems with this horizontal float switch from Sensata Cynergy3. It's a versatile device that can be set to function as an NO or NC switch by simply inverting the switch during installation. It can withstand up to 5 bar of pressure, making it a good choice for use in heavy-duty applications. The switch has a low switching current of just 500mA, so it doesn't consume a lot of power. You'll commonly find this component used in process control and food manufacturing industries.

Features & Benefits

• Cross-linked polyethylene (XLPE) cable sheath for resistance to impact and abrasion
• Stem and float are made of stainless steel material for durability and resistance to corrosion
• Ample cable length of 1m for a flexible electrical connection
• Voltage rating of 300V AC/DC for use in low-power applications

Can I mount this float switch outside the tank?

No, this float switch is designed for internal mounting, so it's only suitable for applications where you have access to the inside of the tank.

SSF211 Series Horizontal Switch Datasheet
