RSF78H100RN, Sensata / Cynergy3 Cynergy3 RSF70 Series Horizontal External Polypropylene Float Switch, Float, 1m Cable, NO/NC, 300V ac Max, 300V dc Max

Sensata Cynergy3 External Horizontal Float Switch, 1A, NO/NC - RSF70 Series - RSF78H100RN

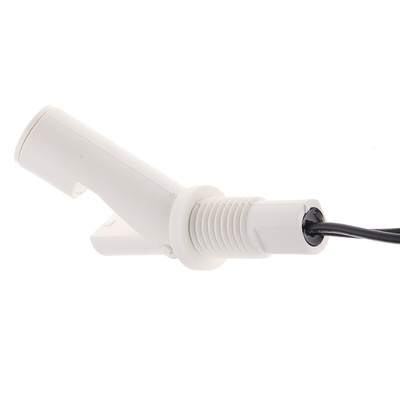

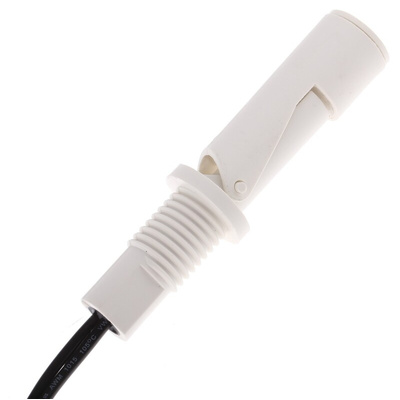

Use this float switch from Sensata Cynergy3 in applications where there's no access to the inside of a tank. It's designed for external mounting and features a high-grade compression seal, which eliminates the need for soldering or welding. The horizontal switch reliably monitors both high and low liquid levels as its action can be easily reversed by mounting the float with the orientation arrow pointing downwards. It's ideal for controlling liquid levels in commercial dishwashers and auxiliary tanks on vehicles.

Features & Benefits

• Strong and durable nitrile rubber gasket that's designed to withstand harsh conditions
• Compact length of 88mm for applications where space is limited
• Wide operating temperature range of -20°C to +100°C for use in hot and cold conditions
• Lead-outs coated in PVC (polyvinyl chloride) for resistance to wear and moisture

What is this float switch made of?

This float switch is made from a durable polypropylene (PP) material that's resistant to a broad range of chemicals. This makes it a good choice for use in demanding industrial environments.

RSF70 Series External Switch Datasheet

Installation Sheet - Float Switches - Installation Notes

Selection Guide - Level Sensors & Switches
