RSF88H100R, Cynergy3 RSF80 Series, Sensor Horizontal External Mounting Level Switch NO/NC Output

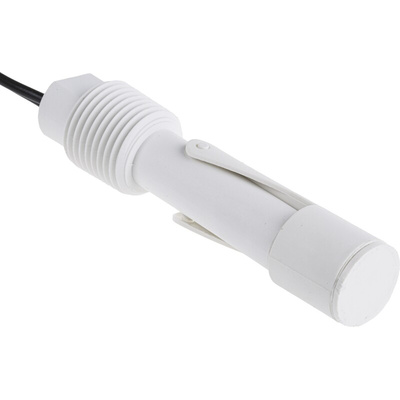

Cynergy3 Float Switch

The Cynergy3 float switch is designed for RSF mounting through the wall of a tank, via a in thread without requiring access to NPT the inside of the tank. This switch can be fitted to achieve either make on the rising (N/O) or make on fall (N/C) action by simply rotating it through 180°. It has a maximum power of 100VA. The switch action can be reversed by mounting the float switch, with the float able to move upwards away from the body instead of downwards.
WRAS approval explained
WRAS is the standard against waste, misuse, undue consumption or contamination of the water supply and must have appropriate quality and standard.
What materials can you choose from?
Nylon
Polypropylene
Polypropylene Sulfide (PPS)
Note:
Suitable for signal switching and use with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e. G. filament lamps) loads.
This float switch is designed for mounting through the outside wall of a tank using an INNPT or BSP threaded hole or boss.
Polypropylene material
INNPT or inBSP external mounting

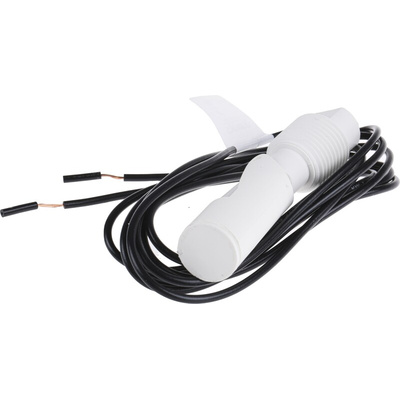

100cm PVC flying leads
Product application information:
This polypropylene float switch is most suitable for use in water, detergents, vegetable oils, some organic and inorganic chemicals. Typical applications include diesel generators, hydraulic oil and gearbox oil levels.

Features and Benefits

Choice of gasket materials: silicone, nitrile, Viton or combination of silicone and nitrile
Flying lead
Cable length of 1m
Maximum current of 1A
External fitting inside a tank
M12 plug connection

Applications

Diesel generators
Hydraulic oil and gearbox oil levels

Certifications

UL approved
WRAS and NSF approved
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Datasheet
