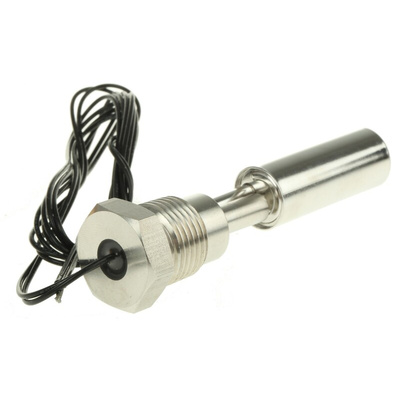

SSF212X100H, Sensata / Cynergy3 Cynergy3 SSF212 Series Horizontal Stainless Steel Float Switch, Float, 1m Cable, NO/NC, 300V ac Max, 300V dc Max

Sensata Cynergy3 External Horizontal Float Switch, 500mA, 5 Bar - SSF212 Series - SSF212X100H

Need to monitor the level of harsh fluids? This float switch from Sensata Cynergy3 is made from stainless steel, making it durable enough to withstand harsh working conditions. It's highly resistant to corrosive substances like diesel fuel and oil, so it's a good choice for use in petrochemical applications. For ease of installation, the horizontal switch is externally mounted, so there's no need to access the inside of the tank.

Features & Benefits

• Supplied with a thread sealing compound to ensure airtight assembly
• Switch action can be easily reversed by mounting the float with the orientation arrow pointing downwards for versatility
• Compact length of 47mm lets you use it in small tanks where space is limited
• Includes 1m lead-outs for a quick and convenient electrical connection

What's the maximum operating temperature of this float switch?

Thanks to its high maximum operating temperature of +180°C, this level sensor is suitable for use in high-temperature applications in the food processing and medical industries.

Why does a float switch need an electrical cable?

An electrical cable lets you connect the switch to a device such as a relay or PLC (programmable logic controller), which is then connected to a pump that responds to the float's water level readings.

SSF212 Series External Switch Datasheet

Installation Sheet - Float Switches - Installation Notes
