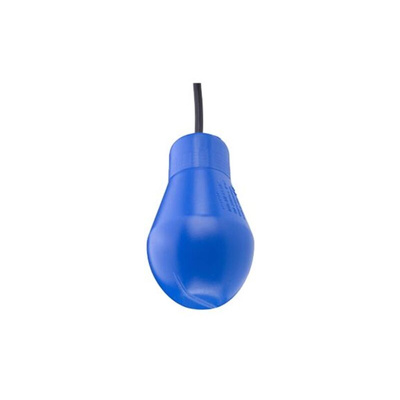

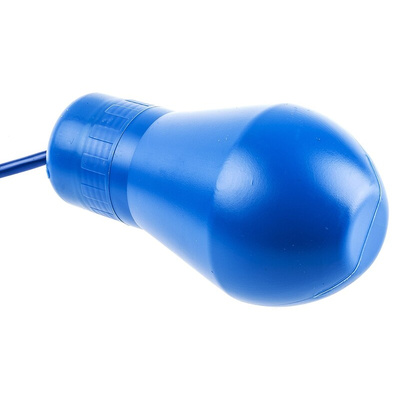

LITTLE-EX-5M, Sensata / Cynergy3 Cynergy3 LITTLE-EX Series Horizontal, Vertical PE Float Switch, Float, 5m Cable, NO/NC

Little EX Series Float Switches

The little EX series of cable float switches are for use in hazardous areas, water, industrial waste water and sewage that can have a wide range of temperatures. The switches are designed for use in confined spaces and the rounded body design prevent the accumulation of solids on the body.

Internal ballast to bring centre of gravity and rotation close to the cable entry point
Insensitive to humidity and condensation
High density polyethylene casing
Overall size 129 x 75mm diameter

Sensata Cynergy3 Horizontal or Vertical Float Switch, NO/NC, 5m Cable - Little-EX Series - LITTLE-EX-5M

This sensitive float switch from Sensata Cynergy3 monitors changing liquid levels in your industrial tank. It helps to prevent overflow hazards by notifying you when the tank is full and lets you know when the tank is nearly empty to avoid underfilling. The switch mounts horizontally or vertically, making it a versatile choice for use in a range of set-ups. You can use it in applications such as water wells, washing machines and vending machines.

Features & Benefits

• High-density polyethylene (HDPE) body material has high impact strength and low friction for use with turbulent liquid
• Long 5m cable for ease of connection within a large industrial tank
• Wide operating temperature range of -20°C to +40°C makes it suitable for use in a wide range of environments
• Rounded floatation component stops solids from clinging to the sensor for enhanced functionality

Can this switch withstand use in pressurised systems?

Yes, it's safe to use this switch in systems that reach high pressures of up to 10 bar.

What are the output options for this float switch?

The switch has NO/NC (normally open/normally closed) output options for flexibility in the layout of your electrical circuit.

Little-EX Series Datasheet

Brochure - Level Sensors & Float Switches

Selection Guide - Level Sensors & Switches
