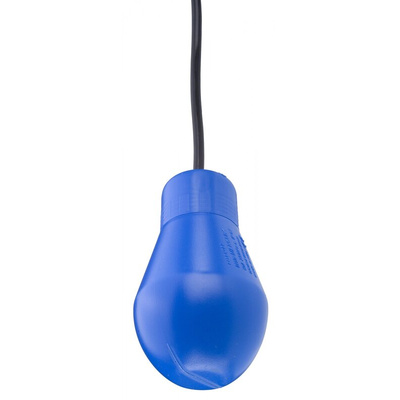

LITTLE-EX-20M, Sensata / Cynergy3 Sensata/Cynergy 3 LITTLE-EX Series Horizontal, Vertical PE Float Switch, Float, 20m Cable, NO/NC

Little EX Series Float Switches

The little EX series of cable float switches are for use in hazardous areas, water, industrial waste water and sewage that can have a wide range of temperatures. The switches are designed for use in confined spaces and the rounded body design prevent the accumulation of solids on the body.

Internal ballast to bring centre of gravity and rotation close to the cable entry point
Insensitive to humidity and condensation
High density polyethylene casing
Overall size 129 x 75mm diameter

Sensata Cynergy3 Float Switch, 10 Bar, 20m Cable - LITTLE-EX Series - LITTLE-EX-20M

Regulate the level of liquid in your tank using this float switch from Sensata Cynergy3. It features a floating element that rests on top of the fluid to monitor its rise and fall. If the liquid surpasses a preset level, the internal mechanical switch activates to start or stop the supply pump. The round shape of the float helps to prevent solid particles from accumulating on its surface for increased hygiene. This rugged component is suitable for use in hazardous environments such as wastewater treatment facilities and sewer systems.

Features & Benefits

• High-density polyethylene body is resistant to chemicals and wear
• Broad operating temperature range between -20°C and +40°C for use in demanding environments
• Ample cable length of 20m for a long reach in large areas
• Maximum operating pressure of 10 bar for use in heavy-duty applications

How do I mount this float switch?

You can mount this versatile float switch vertically or horizontally. When mounted vertically, it'll fit at the top or bottom of the tank, so you can use it for tanks where there's no side access. For horizontal mounting, you can install it through the side of the tank, making it easy to use in tanks without top or bottom access.

Little-EX Series Datasheet

7564309_Selection Guide_en
