1670600, Rittal HD Series Stainless Steel Terminal Box, IP66, IP69K, 150 mm x 150 mm x 80mm, Настенный шкаф

IP69K Hygienic Terminal Boxes

The Rittal HD Hygienic Terminal Box is suitable for accepting electrical equipment in the food processing industry (splash area and non-food area according to DIN EN 1672-2). The enclosure is resistant to cleaning and disinfection as well as being dust-resistant, protecting installed components against intensive water spray (protection category IP66) and high-pressure cleaning (protection category IP69K).

Stainless steel 1.4301 (AISI 304) 1.5mm enclosure and cover
Sheet steel, zinc-plated, 2.0mm mounting bracket
Stainless steel quick-release locks
Silicone Seal, compliant with FDA 21 CFR 177.2600
Intensive water spray IP66 and high-pressure cleaning IP69K
Enclosure and cover have brushed, grain 400, RA < 0.8 um finish
Blue, dyed seal, RAL 5010

Standards

EN 60 529

Supplied with

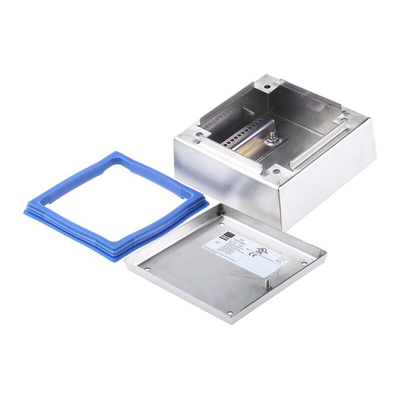

cover, mounting bracket (pre-assembled), seal and quick-release locks (enclosed).

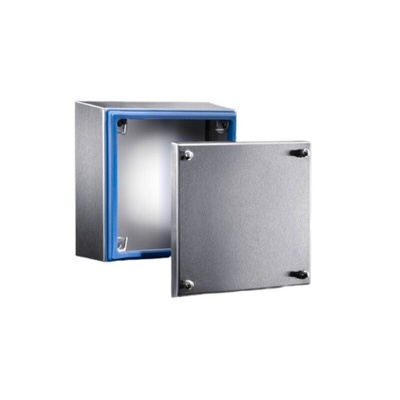

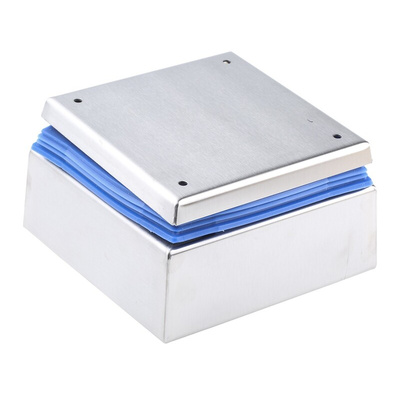

Rittal Terminal Box, Stainless Steel Material, 80mm Depth - HD Series - 1670600

Use this terminal box from Rittal to house and protect electrical equipment in settings where frequent cleaning is needed. The box's body is made from stainless steel that's resistant to corrosion and impact. Its IP66 and IP69K ratings mean it's dust-tight and can withstand high-temperature, high-pressure washdowns. A silicone seal helps to keep contaminants and moisture out, protecting your sensitive devices against damage. Its quick-release bolts make it easy to access the box's interior for maintenance and inspection.

Features & Benefits

• Supplied with an installation bracket for ease of mounting
• Light weight of 1.7kg to place minimal strain on the mounting surface

Applications

• Food and beverage industry
• Telecommunication centres

How large is this terminal box?

This terminal box has compact front dimensions of 150 (height) x 150 (width) x 80mm (depth) and rear dimensions of 172 (height) x 172 (width) x 80mm (depth). This makes it a good choice for storing small components.

Terminal Boxes Assembly and Operating Instructions

Certificate

Instructions

Datasheet
