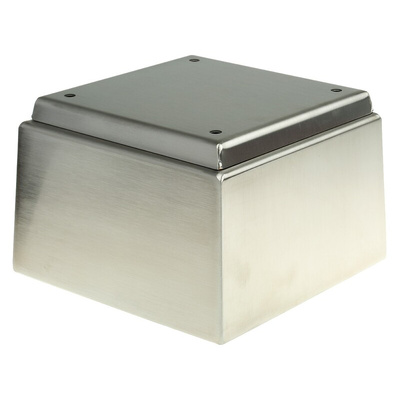

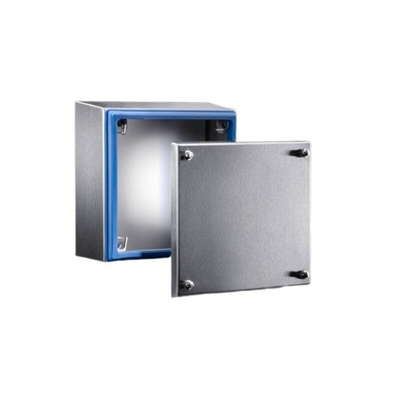

1671600, Rittal HD Series Stainless Steel Terminal Box, IP66, IP69K, 150 mm x 150 mm x 120mm, Настенный шкаф

IP69K Hygienic Terminal Boxes

The Rittal HD Hygienic Terminal Box is suitable for accepting electrical equipment in the food processing industry (splash area and non-food area according to DIN EN 1672-2). The enclosure is resistant to cleaning and disinfection as well as being dust-resistant, protecting installed components against intensive water spray (protection category IP66) and high-pressure cleaning (protection category IP69K).

Stainless steel 1.4301 (AISI 304) 1.5mm enclosure and cover
Sheet steel, zinc-plated, 2.0mm mounting bracket
Stainless steel quick-release locks
Silicone Seal, compliant with FDA 21 CFR 177.2600
Intensive water spray IP66 and high-pressure cleaning IP69K
Enclosure and cover have brushed, grain 400, RA < 0.8 um finish
Blue, dyed seal, RAL 5010

Standards

EN 60 529

Supplied with

cover, mounting bracket (pre-assembled), seal and quick-release locks (enclosed).

Rittal Terminal Box, Stainless Steel Material, 120mm Depth - HD Series - 1671600

Safely house and protect your electrical controls in demanding environments with this terminal box from Rittal. Its body is made from durable stainless steel, so it's resistant to corrosion and impact. The door has a silicone seal to keep air and moisture out. Thanks to its IP66 and IP69K ratings, it's sealed against dust and high-temperature, high-pressure water jets. This makes it a good choice for use in hygienic areas where frequent washdowns are needed.

Features & Benefits

• LIght weight of 2.2kg to place minimal strain on the mounting surface
• Compact dimensions of 150 (front height) x 150 (front width) x 120mm (depth) for installation in tight spaces

Applications

• Processing plants
• Food industry

Is this box easy to install?

Yes, this box is supplied with an installation bracket for fast and simple mounting.
