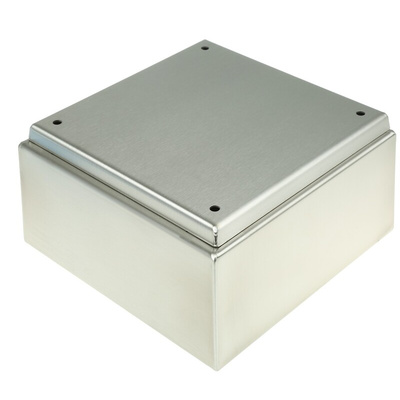

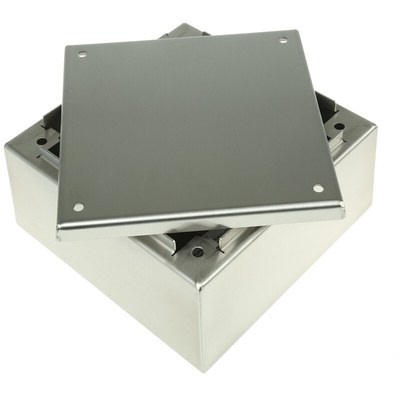

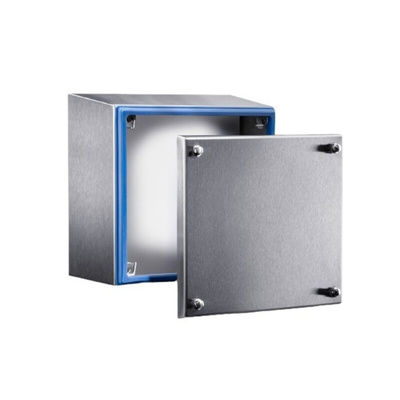

1672600, Rittal HD Series Stainless Steel Terminal Box, IP66, 200 mm x 200 mm x 120mm, Настенный шкаф

IP69K Hygienic Terminal Boxes

The Rittal HD Hygienic Terminal Box is suitable for accepting electrical equipment in the food processing industry (splash area and non-food area according to DIN EN 1672-2). The enclosure is resistant to cleaning and disinfection as well as being dust-resistant, protecting installed components against intensive water spray (protection category IP66) and high-pressure cleaning (protection category IP69K).

Stainless steel 1.4301 (AISI 304) 1.5mm enclosure and cover
Sheet steel, zinc-plated, 2.0mm mounting bracket
Stainless steel quick-release locks
Silicone Seal, compliant with FDA 21 CFR 177.2600
Intensive water spray IP66 and high-pressure cleaning IP69K
Enclosure and cover have brushed, grain 400, RA < 0.8 um finish
Blue, dyed seal, RAL 5010

Standards

EN 60 529

Supplied with

cover, mounting bracket (pre-assembled), seal and quick-release locks (enclosed).

Rittal Terminal Box, Stainless Steel Material, 120mm Depth - HD Series - 1672600

Keep your sensitive system secure with this Rittal terminal box. Its IP66 rating means it provides complete protection against dust and high-pressure water jets for use in harsh industrial settings. The enclosure's stainless steel body is easy to clean, making it suitable for use in hygienic applications. Thanks to its quick-release screw locks, the unit is easy to open for convenient system access.

Features & Benefits

• Roof slope of 3° pushes away surface liquid to prevent leakage
• Gap-free silicone seal to keep contaminants and moisture out
• Compact rear dimensions of 227 (height) x 227 (width) x 120mm (depth) for storing small devices

Applications

• Electrical junctions
• Breweries
• Telecommunications

Does this terminal box come with a mounting bracket?

Yes, this enclosure comes with a mounting bracket for ease of installation.
