1676600, Rittal HD Series Stainless Steel Terminal Box, IP66, 400 mm x 300 mm x 120mm, Настенный шкаф

IP69K Hygienic Terminal Boxes

The Rittal HD Hygienic Terminal Box is suitable for accepting electrical equipment in the food processing industry (splash area and non-food area according to DIN EN 1672-2). The enclosure is resistant to cleaning and disinfection as well as being dust-resistant, protecting installed components against intensive water spray (protection category IP66) and high-pressure cleaning (protection category IP69K).

Stainless steel 1.4301 (AISI 304) 1.5mm enclosure and cover
Sheet steel, zinc-plated, 2.0mm mounting bracket
Stainless steel quick-release locks
Silicone Seal, compliant with FDA 21 CFR 177.2600
Intensive water spray IP66 and high-pressure cleaning IP69K
Enclosure and cover have brushed, grain 400, RA < 0.8 um finish
Blue, dyed seal, RAL 5010

Standards

EN 60 529

Supplied with

cover, mounting bracket (pre-assembled), seal and quick-release locks (enclosed).

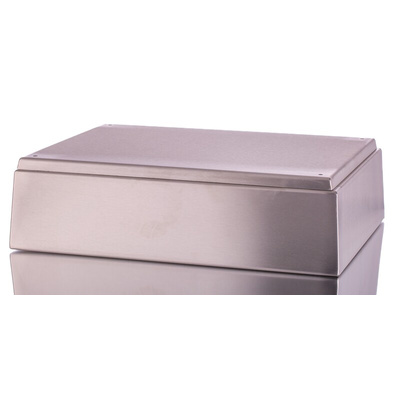

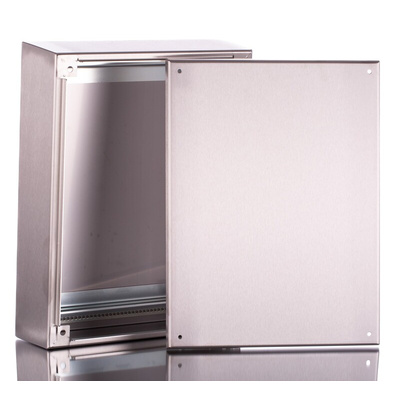

Rittal Terminal Box, 327mm Rear Height, 120mm Depth - HD Series - 1676600

Protect your electronic devices in hygienic environments with this terminal box from Rittal. Its body is made of 304-grade stainless steel that's resistant to corrosion and easy to wipe clean, making it suitable for use in applications such as the food industry. Its IP66 rating means it's dust-tight and protected against high-pressure water jets for use in harsh environments.

Features & Benefits

• Supplied with a mounting bracket for ease of installation
• Quick-release bolt for ease of access to your components
• Silicone seal to prevent contaminants and moisture from entering the enclosure

Applications

• Food processing industry
• Storage facilities
• Medical centres

What size is this terminal box?

This terminal box has compact rear dimensions of 327 (height) x 427 (width) x 120mm (depth), so it's a good choice for storing small components.
