1674600, Rittal HD Series Stainless Steel Terminal Box, IP66, IP69K, 300 mm x 200 mm x 120mm, Настенный шкаф

IP69K Hygienic Terminal Boxes

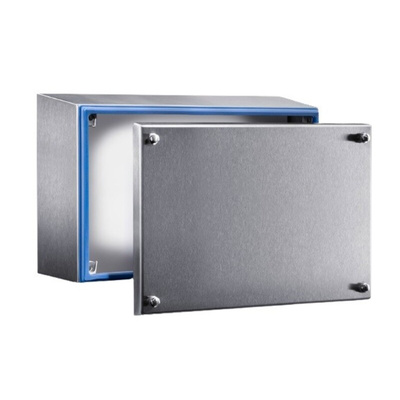

The Rittal HD Hygienic Terminal Box is suitable for accepting electrical equipment in the food processing industry (splash area and non-food area according to DIN EN 1672-2). The enclosure is resistant to cleaning and disinfection as well as being dust-resistant, protecting installed components against intensive water spray (protection category IP66) and high-pressure cleaning (protection category IP69K).

Stainless steel 1.4301 (AISI 304) 1.5mm enclosure and cover
Sheet steel, zinc-plated, 2.0mm mounting bracket
Stainless steel quick-release locks
Silicone Seal, compliant with FDA 21 CFR 177.2600
Intensive water spray IP66 and high-pressure cleaning IP69K
Enclosure and cover have brushed, grain 400, RA < 0.8 um finish
Blue, dyed seal, RAL 5010

Standards

EN 60 529

Supplied with

cover, mounting bracket (pre-assembled), seal and quick-release locks (enclosed).

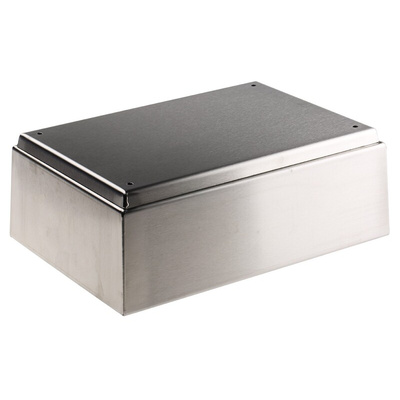

Rittal Terminal Box, Stainless Steel Material, 200mm Front Height - HD Series - 1674600

House and protect your electrical wire junctions or circuit components in demanding industrial settings with this terminal box from Rittal. It has a silicone seal to prevent contaminants and moisture from interfering with your devices. Its IP66 and IP69K ratings mean it's dust-tight and protected against high-pressure, high-temperature water jets, making it a good choice for use in hygienic areas that need frequent cleaning.

Features & Benefits

• Supplied with an installation bracket for ease of mounting
• Stainless steel material for resistance to corrosion and impact
• Light weight of 4kg to place minimal strain on the wall

Applications

• Manufacturing industry
• Residential building wiring

How do I access the contents of this box?

This box's cover uses quick-release bolts, so you can quickly and easily access your devices for inspection or maintenance.
