EA-PS 2342-10 B, EA Elektro-Automatik EA-PS 2000 B Series Digital Bench Power Supply, 0 → 42V, 4A, 3-Output, 332W, Блок питания

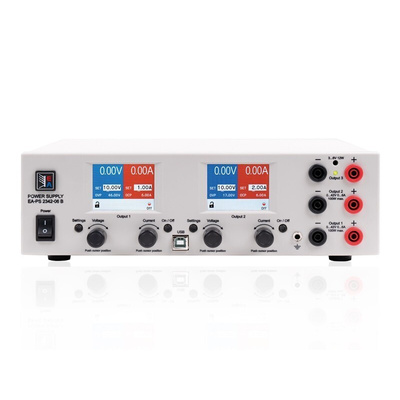

EA Elektro-Automatik Laboratory Power Supply

The EA Elektro-Automatik laboratory bench power supply has a power rating of 332W with 3 channels. The output voltage rating for 2 main channels ranging between 0V to 42V with a current rating of 10A, another output has a voltage rating of 3V to 6V with a current rating of 4A. It switches off the output as soon as the 0 to 110% adjustable threshold of the nominal current is reached and protects the consumer from developing a defect due to overcurrent and thus prevents damage. The values of the adjustable outputs are displayed on a large 4-digit LED voltmeters and ammeters. It ensures galvanic separation of the outputs from the mains.

Features and Benefits

4-digit display for voltage and current
Chassis top and bottom closed
Convection or fan cooling
Fan cooling
Microprocessor controlled
Operating temperature ranging between 0°C and 50°C
Safety output sockets

Applications

Educational institutions
Industrial applications
Laboratories
Production and manufacturing units
Workshops

Certifications

EN60950

EA-PS 2000 B Datasheet

Manual
