EA-PS 2384-03 B, EA Elektro-Automatik EA-PS 2000 B Series Digital Bench Power Supply, 0 → 6V, 3A, 3-Output, 212W, Блок питания

EA-PS 2000B Triple Series

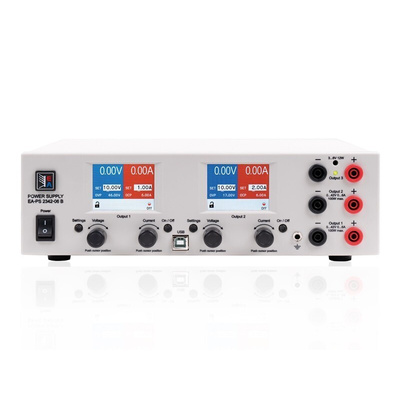

EA-PS 2000B Triple Series laboratory power supplies are compact, robust and of contactless design. Each model offers two separated outputs, with adjustable output voltage and current, plus an auxiliary output which can be adjusted in a range of 3 → 6V by a trimmer (nominal current 2A@6V, 4A@3V). EA-PS 2000B Triple Series PSUs have a full range of standard functions. Users can also lock pushbuttons and knobs to protect againat unintentional use or define thresholds for an automatic output cut-off in case of overcurrent or overvoltage. All models have a built-in USB interface which can be used to remotely control and monitor the device by a PC. These features make the EA-PS 2000B Triple Series a popular choice for schools, educational facilities, workshops and laboratories.

Power consumption at output off 24W
Accuracy ≤0.2%
Overvoltage Class II
Protection Class I
Fanless cooling by natural convection

Standards

EN 60950, EN 61326, EN 55022 Class B

Supplied with
type":"Supplied with",

Printed instruction manual & mains cord (Schuko, IEC)

Elektro-Automatik

EA-PS 2000 B Datasheet

Manual
