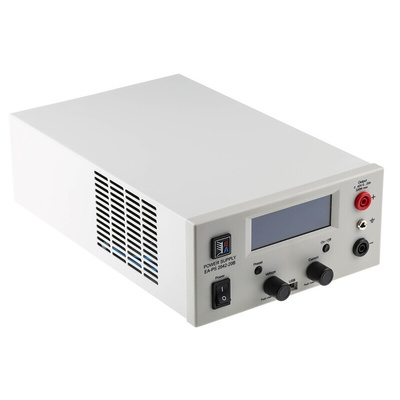

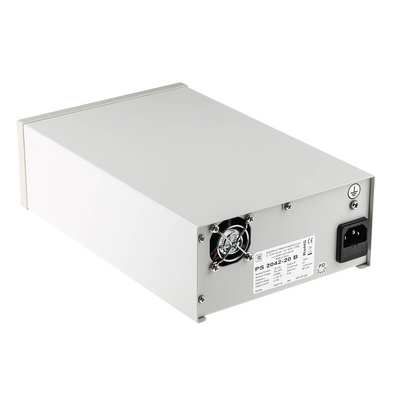

EA-PS 2042-20B, EA Elektro-Automatik EA-PS 2000 B Series Digital Bench Power Supply, 0 → 42V, 20A, 1-Output, 320W, Блок питания

EA Elektro-Automatik Laboratory Power Supply

The EA Elektro-Automatik laboratory bench power supply has a power rating of 320W. It is microprocessor controlled and USB-programmable single-channel power supply which provides a fully flexible 'auto-ranging' output. Enabling them to work with either a higher voltage or a higher current within the stipulated U/I/P rating. These power supplies are equipped with digital encoders for U and I setting. It has a full 4-digit LCD segment display with various function status (output pre-set, -lock and standby) and a mini USB port for computer control. The units have high stability and low ripple and are protected against overcurrent (OCP), DC over-voltage (OVP) and over-temperature (OTP). It has output voltage ranging between 0V to 42V and an output current rating ranging between 0A to 20A.

Features and Benefits

Fan convection cooling
Operating temperature ranging between 0°C and 50°C
Safety output sockets
Efficiency 85%
Operating frequency ranging between 45Hz and 65Hz
Attractive flat desk-top housing
Adjustable threshold current

Applications

Educational institutions
Industrial applications
Laboratories
Production and manufacturing units
Workshops
Schools

Certifications

EN60950

EA-PS 2000 B Datasheet

Manual
