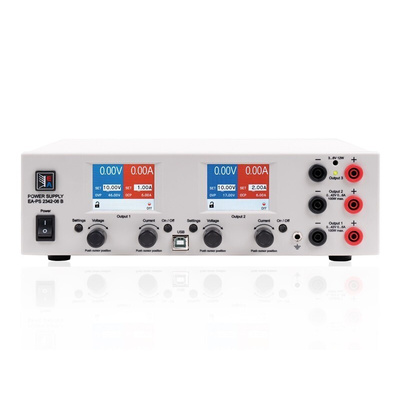

EA-PS 2384-05 B, EA Elektro-Automatik EA-PS 2000 B Series Digital Bench Power Supply, 0 → 6V, 4A, 3-Output, 332W, Блок питания

EA Elektro-Automatik Laboratory Power Supply

The EA Elektro-Automatik laboratory bench power supply has a power rating of 332W with 3 channels. The output voltage rating for 2 main channels ranges between 0V to 84V, current rating is 5A, another output has a voltage rating of 3V to 6V and the current rating is 4A. It switches off the output as soon as the 0 to 110% adjustable threshold of nominal current is reached and protects the consumer from developing a defect due to overcurrent and thus prevents damage. The values of the adjustable outputs are displayed on a large 4-digit LED voltmeters and ammeters. It ensures galvanic separation of the outputs from the mains.
Supplied with:
Printed instruction manual & mains cord (Schuko, IEC).

Features and Benefits

Chassis top and bottom closed
Fanless cooling by natural convection
Over temperature protection (OT)
Power consumption at output off 24W
Accuracy is ≤0.2%
Safety output sockets
Overvoltage Class II
Operating temperature ranges between 0°C and 50°C

Applications

Industry and system applications
Laboratories and test institutes
Schools, university and laboratories
Workshop and development

Certifications

EN 60950
EN 61326
EN 55022 Class B
