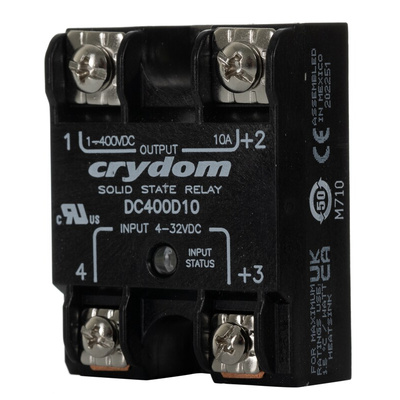

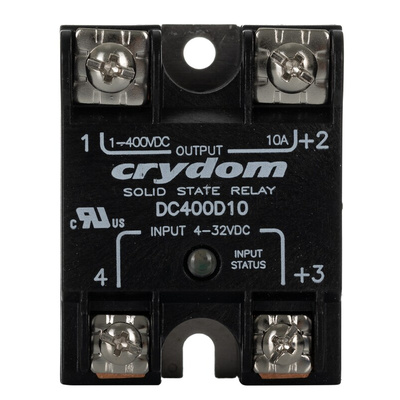

DC400D10, Sensata / Crydom DC Series Series Solid State Relay, 10 A Load, Panel Mount, 300 V dc Load, 32 V dc Control, Реле

Sensata | Crydom Solid-State Relay, 2500Vrms Dielectric Strength, 10pF I/O Capacitance - PowerPlus DC Series - DC400D10

Want to flip on your system in a flash? Choose this solid-state relay from Sensata | Crydom. It has a quick turn-on time of just 0.075ms for near-instant control, making it ideal for time-sensitive applications. Thanks to the thermally conductive epoxy coating, this component shrugs off heat build-up to keep things running smoothly. It fits firmly onto a panel using screws, so it's a cinch to install. You'll find this device used in lighting and heating applications.

Features & Benefits

• Screw terminals take the hard work out of wiring to speed up installation
• Performs reliably in harsh environments, thanks to its broad operating temperature range between -30°C and +80°C
• Compact dimensions of 57.3 (L) x 44.5 (W) x 26.8mm (H) to maximise space on your panel

Can I use more than one SSR at a time?

Yes, you can use this relay in parallel with another to suit the demands of high-current applications.

What's the current rating of this SSR?

Its current rating of 10A makes it a practical pick for low-power applications.

DC Switching

Solid State Relay DC400D10

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)
