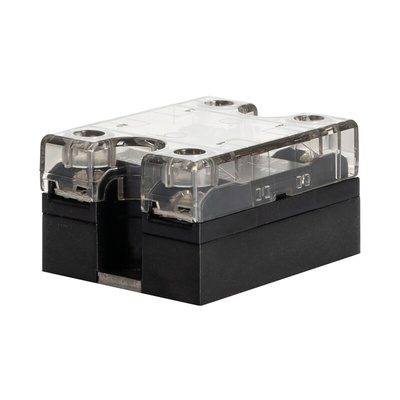

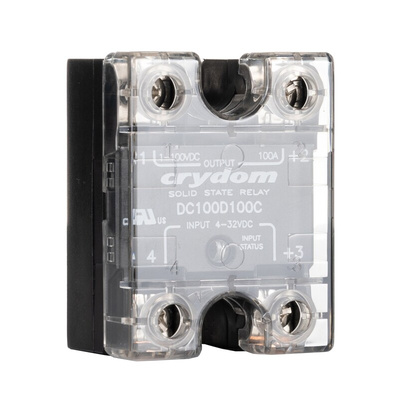

DC100D100C, Sensata / Crydom DC Series Solid State Relay, 100 A Load, Surface Mount, 72 V dc Load, 32 V dc Control, Реле

Sensata | Crydom Solid-State Relay, 100A Rated Load Current, 4 to 32V DC Control Voltage Range - Power Plus DC Series - DC100D100C

Switch to an efficient and versatile solution for circuit control with this solid-state relay from Sensata | Crydom. It's an instantaneous switching type that's designed to quickly open or close a circuit, making it ideal for situations where fast and frequent switching is needed. An operating voltage range of 1 to 100V DC means it's just the thing for low-power applications. You'll find an SSR like this one used in applications such as lighting and communication systems.

Features & Benefits

• Broad operating temperature range of -40°C to +100°C for use in extreme environments
• No moving parts for minimal wear and long-lasting performance
• Screw terminals for secure, hassle-free connections
• Low off-state leakage current of 0.1mA for minimal energy waste

How quickly can this SSR switch a circuit on or off?

It has a turn-on time of 75μs and a turn-off time of 150μs, so you can rest assured you'll get rapid results.

Is this relay safe to handle?

Yes, this relay is supplied with a cover that has an IP20 rating, meaning it's touch-proof and protected against objects larger than 12mm in size.

DC Switching

Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)
