3238110, Rittal 3238 Series Filter Fan, 115 V ac, AC Operation, 50m³/h Filtered, 66m³/h Unimpeded, IP54, 148.5 x 148.5mm, Вентилятор

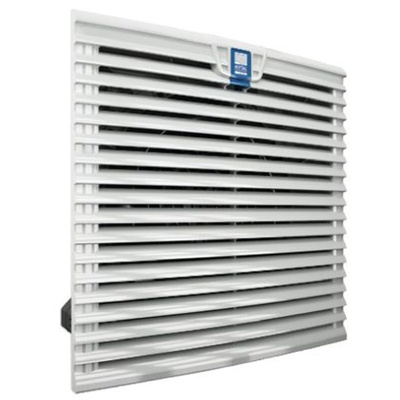

Rittal Assembled Filter Fan Unit, 148.5mm Height, 115V AC - TopTherm Series - 3238110

Provide a constant flow of purified air to your environment with this filter fan unit from Rittal. This product has a built-in filter mat to ensure clean airflow, along with a removable latched grill for fast filter replacement. It comes fully assembled, so it requires no tools for installation or maintenance. Its compact face dimensions of 148.5 (height) x 148.5mm (width) and its installation depth of 58.5mm make it ideal for wall or ceiling-mounting in areas where there's limited space. This fan has an IP54 (ingress protection) rating, ensuring protection against dust and water sprays from all directions.

Features & Benefits

• Low sound output of 49dB (decibels) to limit noise in your workspace
• Filtered air flow rate of 50m³/h (cubic metres per hour) and unimpeded air flow of 66m³/h for efficient filtering
• Self-starting shaded pole motor for automatic air flow

Applications

• Laboratories
• Engineering machinery
• Industrial factories
• Medical centres

What’s the operating temperature of this filter fan unit?

This fan unit has a wide operating temperature range of -15°C to +55°C, making it suitable for use in demanding environments.

Datasheet

Datasheet - 3238110

Dimension Sheet - 3238110
