3238.124, Rittal Filter Fan148.5 x 148.5mm Face Dimensions, 50m³/h, DC Operation, 24 V dc, IP54, Вентилятор

Rittal Filter Fan

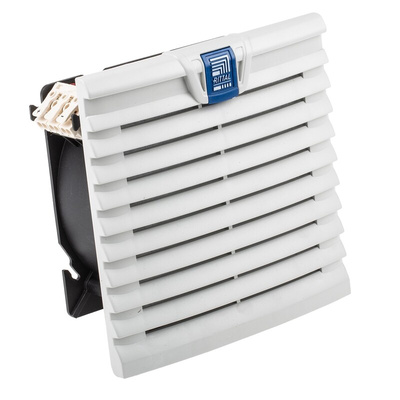

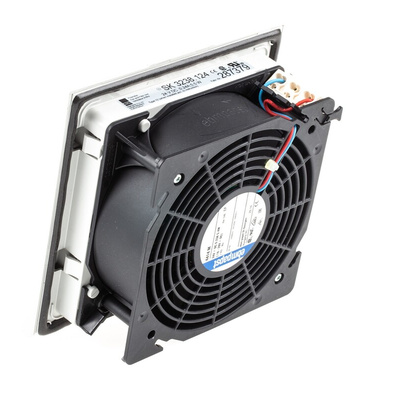

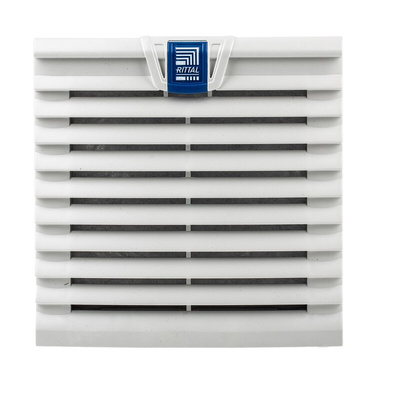

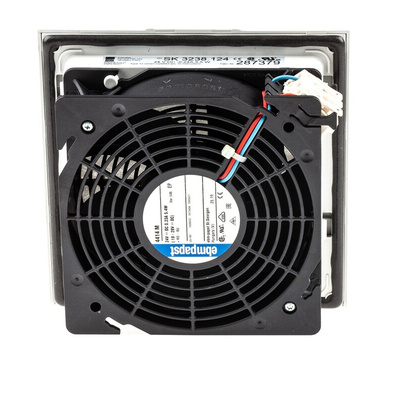

The Rittal TopTherm series filter fan is easy to assemble, highly efficient, and a versatile unit that provides airflow of 55m³/h and supply voltage of 24VDC. It does not require any tools during assembly, exchange or maintenance. The fan module and power connection are simple to position to suit the needs of the application. A latch on the grille allows fast filter replacement and the electrical connections are managed with spring clamp terminals. TopTherm units feature efficient technology that enables greater pressure stability and more airflow. It has a face height of 148.5mm, width of 148.5mm and the installation depth of 58.5mm.

Features and Benefits

Flexible assembly options
Minimum installation depth
Even air distribution
Noise level 46dB

Certifications

IP54 rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Datasheet
