3238.600, Rittal Filter Fan148.5 x 148.5mm Face Dimensions, 43 m³/h, 46 m³/h, 50 m³/h, 56 m³/h, AC Operation, 230 V ac, IP54, Вентилятор

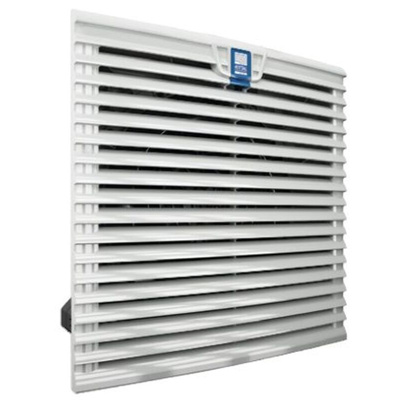

Rittal Filter Fan

The Rittal TopTherm series filter fan unit provides airflow of 56m³/h and a supply voltage of 230VAC. This fan is efficient, easy to assemble and versatile and requires no tools during assembly, exchange or maintenance. This fan module and power connection are simple to position to suit the needs of the application. It has a latch on the grille that allows fast filter replacement and the electrical connections are managed with spring clamp terminals. It also features efficient technology that enables greater pressure stability and more constant airflow. It has a face height of 148.5mm, width of 148.5mm and the installation depth of 58.5mm.

Features and Benefits

Flexible assembly options
Minimum installation depth
Even air distribution
Self-starting shaded pole motor
Noise level 46 dB, 49 dB

Certifications

IP54 rated
IP55 with hose-proof hood
IP56 with hose-proof hood

Datasheet
