3239.600, Rittal Filter Fan204 x 204mm Face Dimensions, 100 m³/h, 108 m³/h, 87 m³/h, 93 m³/h, AC Operation, 230 V ac, IP54, Вентилятор

Rittal Filter Fan

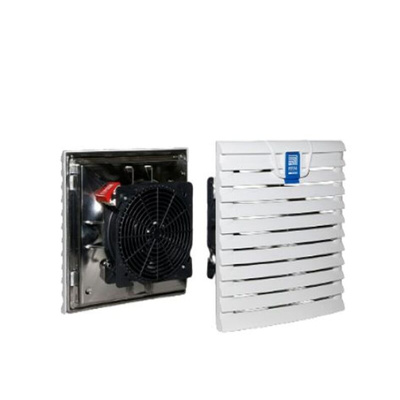

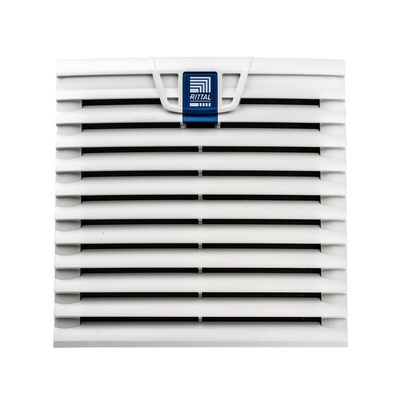

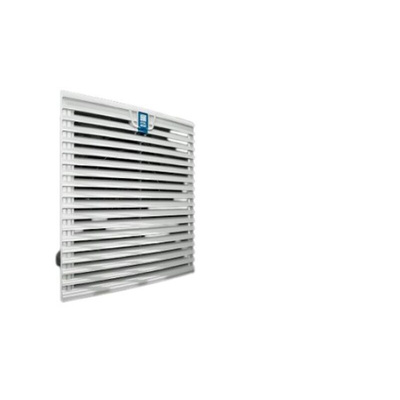

The Rittal TopTherm series filter fan is easy to assemble, highly efficient, and a versatile unit that provides airflow of 100m³/h and supply voltage of 230VAC. It does not require any tools during assembly, exchange or maintenance. The fan module and power connection are simple to position to suit the needs of the application. A latch on the grille allows fast filter replacement and the electrical connections are managed with spring clamp terminals. TopTherm units feature efficient technology that enables greater pressure stability and more airflow. It has a face height of 204mm, width of 204mm and an installation depth of 90mm.

Features and Benefits

Flexible assembly options
Minimum installation depth
Even air distribution
Noise level 49dB
Operating temperature ranges between -10°C and 55°C

Certifications

IP54 rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Datasheet
