3239110, Rittal 3239 Series Filter Fan, 115 V ac, ac Operation, 100m³/h Filtered, 120m³/h Unimpeded, IP54, 204 x 204mm, Вентилятор

Rittal Filter Fan, 100m³/h, IP54 - 3239110

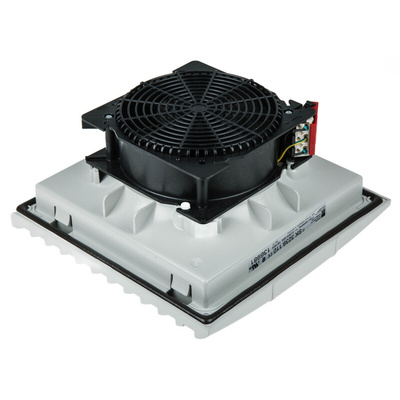

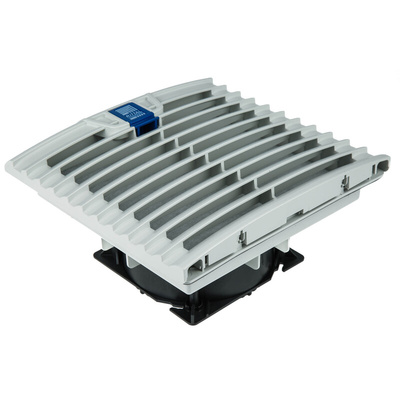

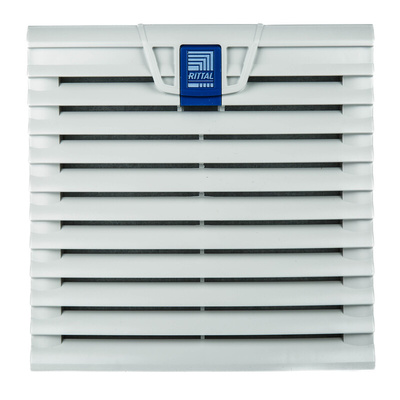

Use this filter fan unit from Rittal to provide cooling for electrical and mechanical components in wall and panel enclosures. This unit comes as a ready-to-install package, complete with the fan, filter and frame for quick and easy assembly. The fan is energy-efficient, as it consumes just 17W of power for optimal performance. It also produces a low sound output of 49dB (decibels) when it's running to keep noise to a minimum. For electrical safety and to prevent damage to the unit, it has a miniature circuit breaker that cuts off power to the fan in the event of a short circuit.

Features & Benefits

• IP54 (ingress protection) rating means it can withstand limited amounts of dust and water sprays
• High filtered airflow rate of 100m³/h (cubic metres per hour) for optimal ventilation and cooling
• Chemical fibre filter material absorbs dust effectively

Applications

• Telecommunication devices
• Security and surveillance systems
• Electrical control cabinets

How do I install this cooling unit?

This filter fan unit is easy to install as it simply snaps into the mounting cut-out for tool-free installation.

Datasheet
