3239124, Rittal 3239 Series Filter Fan, 24 V dc, dc Operation, 100m³/h Filtered, 105m³/h Unimpeded, IP54, 204 x 204mm, Вентилятор

Rittal Filter Fan, 100m³/h, 24V DC - 3239124

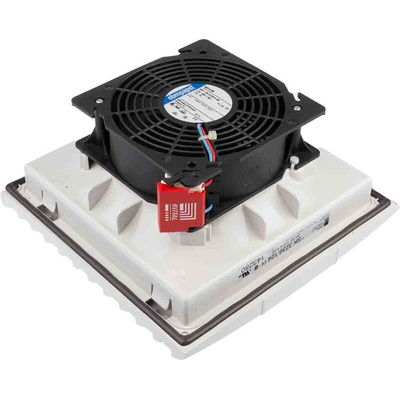

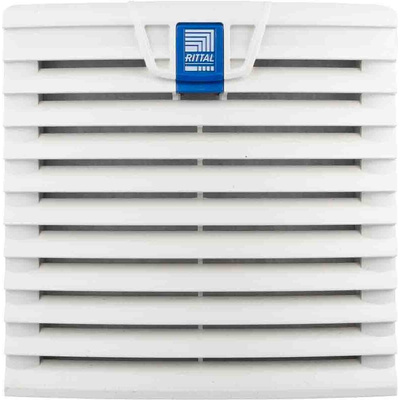

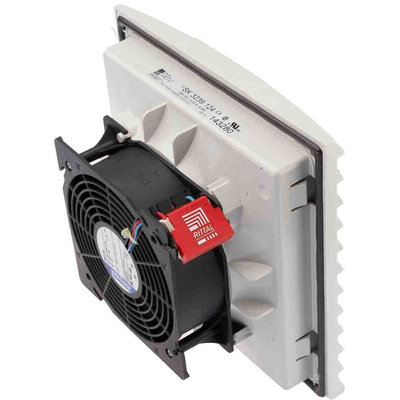

Looking for a simple, energy-efficient cooling solution for your enclosures? This filter fan unit from Rittal is the ideal solution. This component comes complete with a fan, filter and protective cover to provide effective ventilation to parts housed in your enclosures. This unit has an air throughput of up to 100m³/h (cubic metres per hour), ensuring effective heat dissipation and airflow to prevent overheating.

Features & Benefits

• Wide operating temperature range of -15°C to +55°C makes it suitable for use in harsh environments
• 2A fuse to protect the unit against electrical damage in the event of a short circuit
• IP54 (ingress protection) rating means it can withstand limited amounts of dust and water spray from any direction
• Low noise level of 46dB (decibels) to minimise disruptions in your workspace

Applications

• Information technology (IT) infrastructure
• Food production plants

Can I change the direction of the airflow?

Yes, this fan filter can either be used to blow cool air into the enclosure or to extract hot air out of it. To change the function, simply release the fan's housing and rotate it by 180°.

Datasheet
