3241100, Rittal Filter Fan, 230 V ac, ac Operation, 205m³/h Filtered, 250m³/h Unimpeded, IP54, 255 x 255mm, Вентилятор

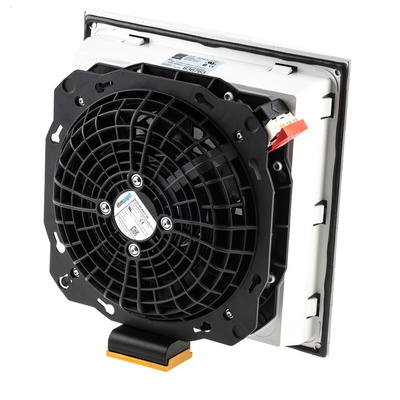

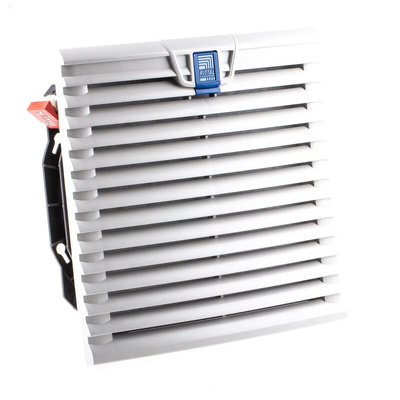

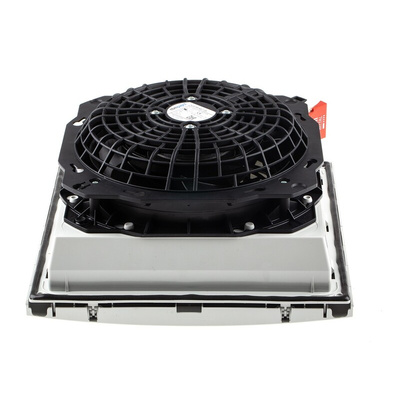

Rittal Filter Fan, 255 x 255mm, 205m³/h - TopTherm Series - 3241100

Quickly set up a climate control system in your enclosure with this filter fan from Rittal. It's easy to install thanks to its tool-free assembly and spring clamp terminals, saving you time and effort. It only needs a small cut-out length and width of 224mm, so it won't take up much wall space. This fan works efficiently to blow in or extract air thanks to its diagonal fan mechanism, which helps to distribute air evenly. The included filter mat is easy to fit and change thanks to a latch on the front grille.

Features & Benefits

• Low sound level of 56dB (decibels) to minimise noise
• Unimpeded airflow of 250m³/h (cubic metres per hour) and filtered airflow of 205m³/h to maximise ventilation
• Fan mechanism is mountable in any direction for flexibility
• Wide operating temperature range of -30°C to +55°C means it works in a variety of demanding environments
• IP54 (ingress protection) rating means it's resistant to dust and water splashes

Applications

• Server room and data cabinets
• Industrial and electrical enclosures
• Climate control systems

How long will this filter fan last?

This filter fan has a long service life of up to 61,000 hours, so it will last a long time.

Datasheet

Catalogue - Technical System Catalogue

Dimension Sheet - Climate Control

Datasheet - 3241100
